Tacoma Crossmember Delete Front Bumper / 3rd Gen / 2016-2023
Description

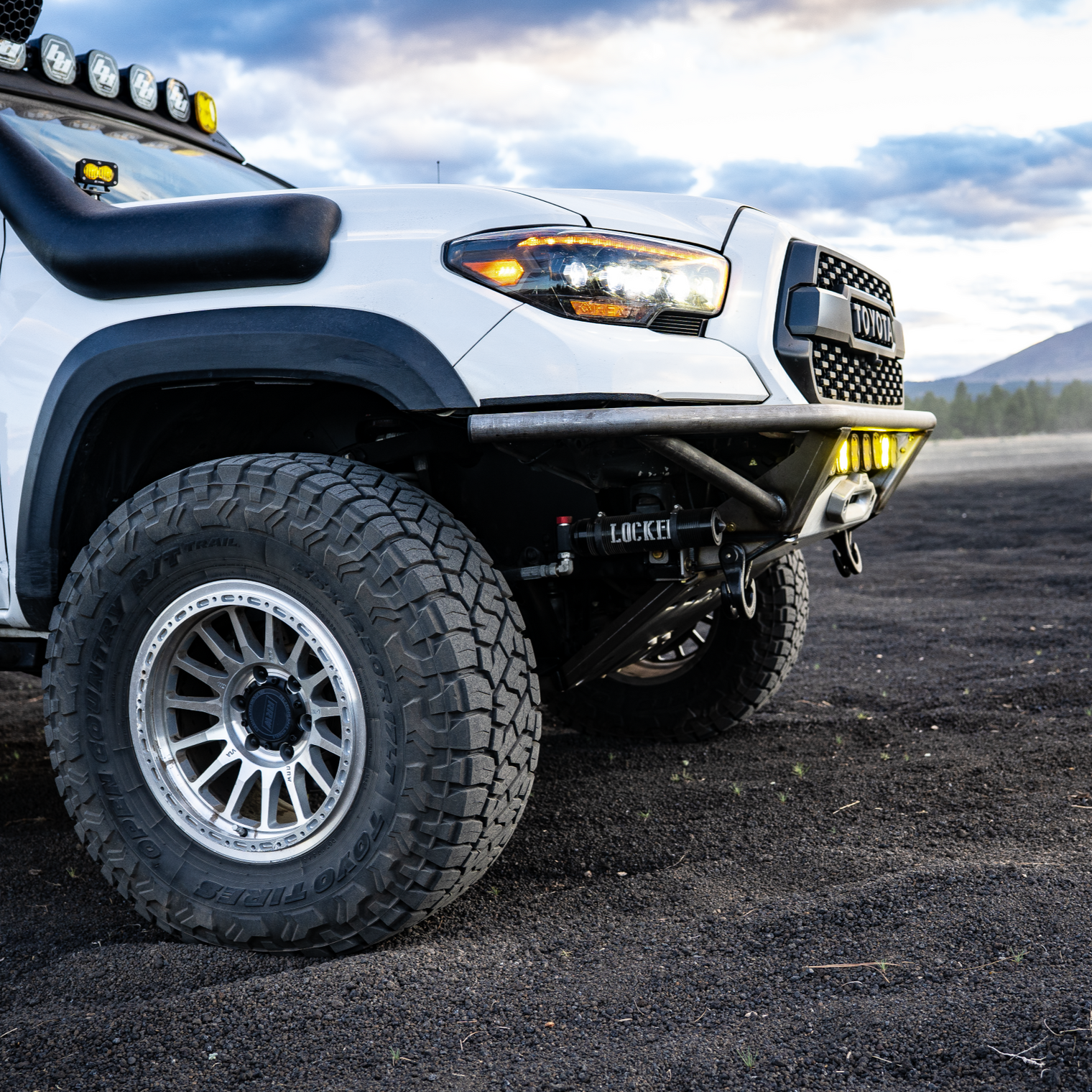

Crossmember Delete Front Bumper – 2005–2023 Toyota Tacoma
Lightweight, Rigid, and Built for Clearance
The Crossmember Delete Front Bumper delivers maximum strength and trail clearance without unnecessary weight. Constructed from 3/16” A36 steel with 1 ¾” × .120 DOM tubing and 1 ½” × .120 wall side supports, this one-piece bumper weighs just 66 lbs while still providing secure recovery points thanks to its laminated D-ring plate design.
Crossmember Delete Design
- Requires removal of the factory lower crossmember
- Includes a heavy-duty replacement crossmember that bolts between frame rails
- Replacement serves as the mounting base for both the skid plate and bumper
- Trimming of grille and fender caps is required for installation
Power Steering Cooler Relocation
Factory power steering cooler relocation is necessary. This kit includes everything you need:
- 10-row high-performance cooler with push-lock AN fittings
- Combination mount secures both the cooler and winch control box to the core support
Lighting Compatibility
- Side-wing mounts fit Baja Designs Squadron, S2, and similar lights
- Optional 7” light bar mount (sold separately) adds even more lighting versatility

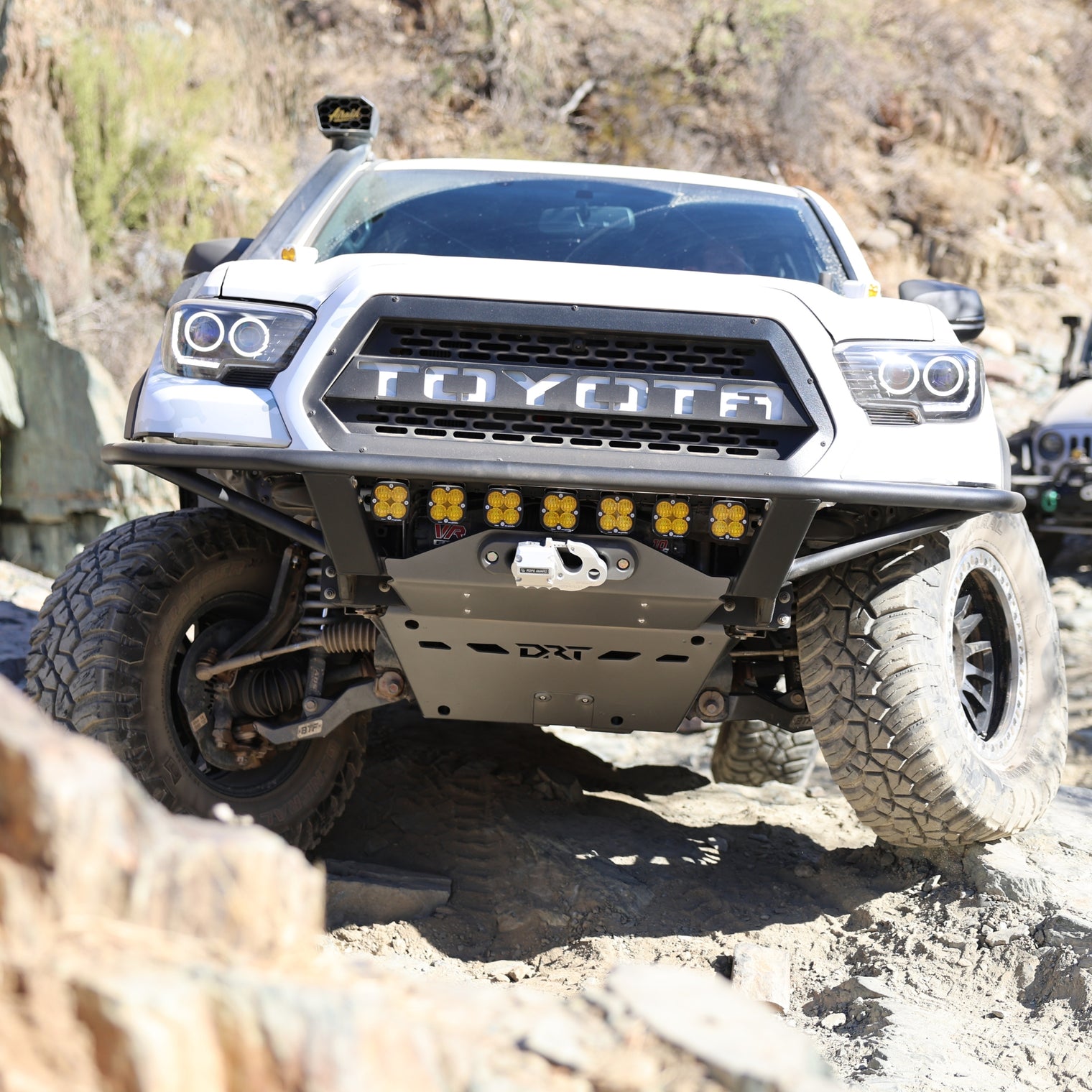

High-Clearance Engine Skid Plate
- Built from 3/16” steel with 8 mounting points (industry standard is 6)
- Flush-mounted access panels allow easy oil changes
- Includes stainless CNC-machined washers to protect panel hardware
Frame Reinforcements Included
- Weld-on 3/16” steel frame reinforcement plates are included for added strength and long-term durability
Notes
- Power steering cooler relocation is not required if you are not deleting the factory crossmember
- All power steering & winch control box relocation components are included standard with this kit
- Powder coat recommendation: Bk08 (black) with Prismatic forged charcoal for skid plates.
Specs
- Weight: 66 lbs
- Materials:3/16” steel plate main shell¼” aluminum skid plate.120-wall DOM tubing (1 ¾” and 1 ½”)
- Crossmember: Heavy-duty replacement included
- Recovery Points: Laminated plate D-ring design for secure mounting
- Lighting: Side-wing mounts fit Squadron, S2, and similar pods; optional 7” light bar mount available separately
- Skid Plate: 3/16” high-clearance steel skid with 8 mounting points and flush-mounted access panels
- Frame Reinforcements: 3/16” weld-on plates included (recommended but not required)
- Cooler Relocation: 10-row high-performance power steering cooler with AN fittings included
- Winch Mount: Compatible with ZEON & EVO series, Superwinch, and Carbon Off-Road (others may require modification); winch control box relocation kit included
- Finish: Ships raw
Lead Times
Estimated lead time: 7–9 weeks
Shipping
We offer free freight shipping to all addresses in the Lower 48 states.
For Alaska, Hawaii, and U.S. territories, shipping rates will be calculated and applied at checkout.
-
Carbon 12K 12000lb Electric Winch With Black Rope and Hook
$899.00( / )Unavailable -
Cab Mount Relocation / Toyota Tacoma / 2nd & 3rd Gen / 2005-2016
$265.00( / )Unavailable -
Lower Control Arm Skids / Tacoma 2005-2023 / 4Runner 2011-2024
$209.00( / )Unavailable -
-
Up to 11% offCarbon Offroad Monkey Fist 15T Synthetic Soft Shackle
$40.00$45.00( / )Unavailable
Frequently Asked Questions
What is a crossmember delete bumper?
The basics & what it does
A Crossmember Delete Front Bumper for the Toyota Tacoma is an off-road bumper designed to replace the factory lower crossmember with a high-clearance, heavy-duty structure. This modification improves both protection and performance by eliminating the bulky OEM crossmember and maximizing ground clearance.
Key Benefits of a Crossmember Delete Bumper:
- Gain up to 5” of additional clearance compared to the stock bumper and crossmember.
- Improved approach angles for navigating rocks, steep ledges, and tight trail obstacles.
- Lightweight yet strong design (approx. 66–70 lbs) reduces front-end weight compared to traditional plate or hybrid bumpers.
- Integrated recovery points built into the chassis with laminated D-ring plates for safe, real-world recoveries.
- High-clearance skid plate included, featuring flush-mounted access panels for simple oil changes and stainless CNC hardware protection.
- Reinforced with weld-on frame plates for long-term durability and confidence in extreme off-road conditions.
Why Upgrade?
The stock Tacoma crossmember sits low, catching on rocks, dirt ledges, and trail debris. A crossmember delete bumper moves this section higher into the frame, providing a smoother, stronger, and more functional undercarriage design. The result is an extra 5” of clearance, weight savings and the confidence to take on technical terrain without worrying about getting hung up.
Why should i choose DRT's Crossmember Delete Front bumper over others?
While there are several crossmember delete bumpers on the market, the DRT Fabrication Crossmember Delete Bumper stands apart because we don’t cut corners. Yes, we’re often the more expensive option—but there’s a reason for that. Every single aspect of our bumper has been thoroughly and intentionally engineered for strength, function, and ease of use.
Here’s Why DRT Leads the Industry:
- 1-Piece Main Design
Built with a 1.75” DOM main tube, not 1.5” tubing.
We use a true one-piece construction with fully welded supports, not bolt-on brackets with Grade 5 hardware like some competitors. - Lighting Provisions Standard
Every DRT bumper comes with integrated lighting mounts for popular off-road lights (Squadron, S2, and more). No extra brackets required. - Engineered for Proper Integration
For the 3rd Gen Tacoma Crossmember Delete Bumper, we include a winch control box relocation kit that’s simple and clean to install. - 2-in-1 Power Steering Cooler Package
Comes standard with a 10-row performance power steering cooler mounted on laser-cut 1/8” brackets.
Our 2-in-1 mount keeps the winch control box and cooler neatly packaged and protected.
Competing options often skip the cooler altogether for you to figure out or worse, mount it directly to your A/C condenser, risking long-term damage. - Attention to Detail, Inside and Out
From recovery points to skid integration, every component is designed to work together as a complete system. Nothing is an afterthought.
The DRT Difference
At DRT Fabrication, we believe in building parts that are “Built Right. Built Light.” That means investing more time, better materials, and smarter design so you get a bumper that lasts longer, performs better, and installs cleaner.
When you buy DRT, you’re not just buying a bumper, you’re buying peace of mind that every trail obstacle, recovery, and install detail has already been engineered with you in mind.
