Tacoma Hybrid Front Bumper / 3rd gen / 2016-2023

Hybrid Front Bumper – 2016-2023 Toyota Tacoma

Built for Strength and Functionality

Upgrade your 2016-2023 Toyota Tacoma with a hybrid front bumper engineered for maximum protection, clearance, and off-road performance. Constructed from premium U.S.-sourced steel, this bumper combines strength with the functionality required for demanding trail use.

Engineered With Purpose

Every detail of this bumper is intentionally designed—balancing strength, weight savings, and functionality. From the laminated recovery points to the recessed skid plate integration, our design ensures durability where you need it most without overbuilding. For more insight into the engineering principles that set our bumpers apart, check out the Hybrid Tech blog post on our website

Lighting Versatility

• Side-wing mounts fit Baja Designs XL Squadron, Squadron, or S2 pods

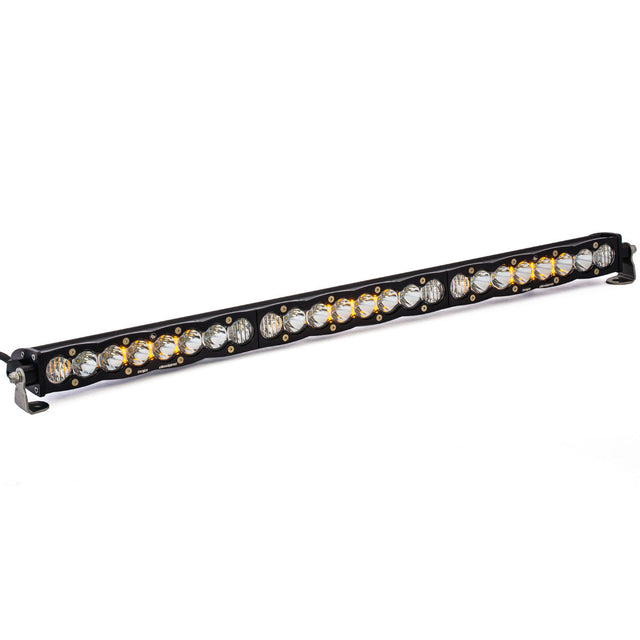

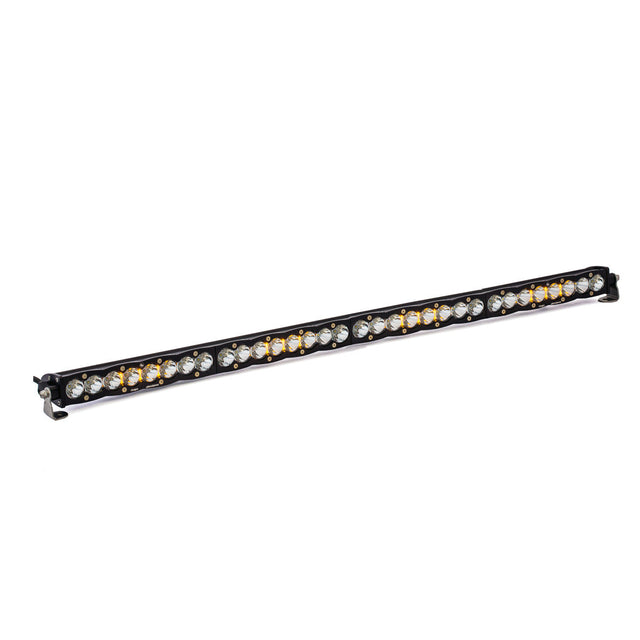

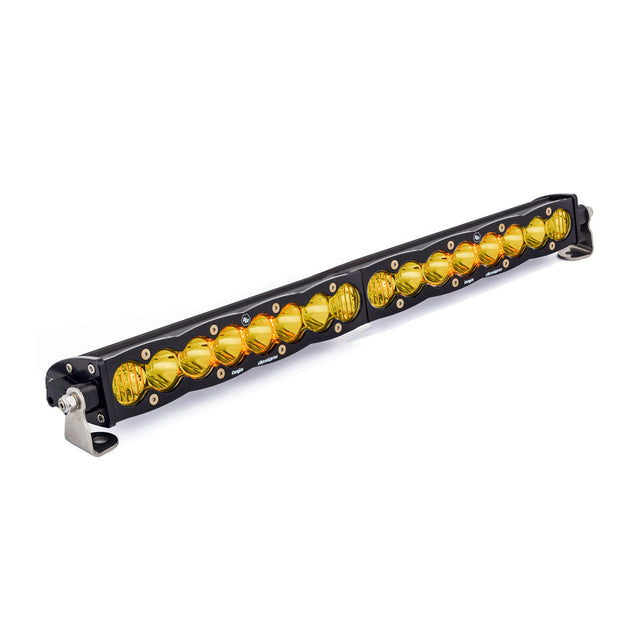

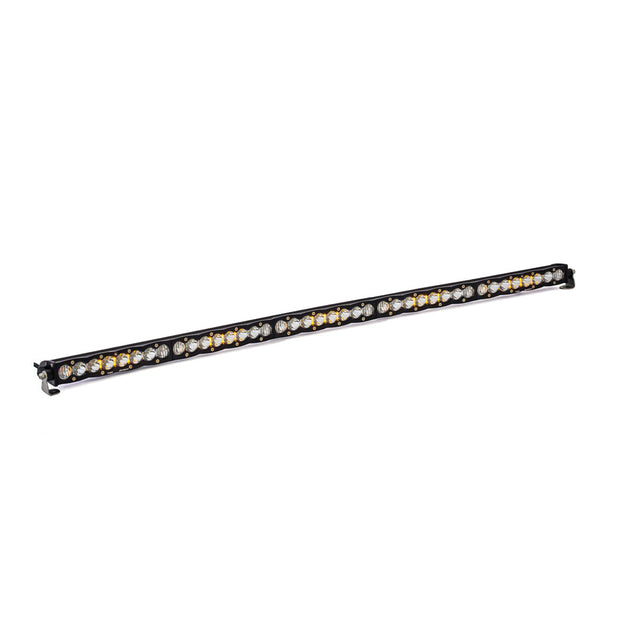

• Center mount accommodates a 30” single-row light bar
• Designed for easy installation and maximum nighttime visibility

Winch-Ready Design

• Integrated winch mount supports 10K–12K winches (control box relocation may be required on some models)
• Recessed fairlead mount built into a ¼” aluminum skid plate
• Secured with 5/16” stainless steel hardware for durability

Recovery-Ready

• 1” billet steel D-rings, welded front and back for unmatched strength
• Works with ¾” shackles and ⅞” pins
• Built-in recovery points you can trust on the trail

Frame Support & Compatibility

• Includes frame support brackets that mount through the frame (not on top) for added rigidity
• Designed to clear and work with aftermarket shock reservoirs including King, Fox, and ADS

Finish & Shipping

• Ships RAW steel (not powder coated)
• Finishing is strongly recommended before installation

Specs

• Weight: 108 lbs
• Materials: 3/16" steel main shell, 1/4" aluminum skid plate, 1 3/4" x .120 wall DOM tubing
• Winch Mount: Fits 10K-12K winches (control box relocation may be needed)
• Light Compatibility: Center 30" S8 single-row light bar; side mounts fit XL Squadron, Squadron, or S2 lights
• Fairlead Mount: Recessed into skid plate
• D-Ring Mounts: 1" thick billet steel, fully welded
• Shackles: Designed for 3/4" shackles with 7/8" pin
• Frame Supports: Included (mount through the frame)
• Skid Plate: Works with TRD skid plates
• Finish: Ships raw
• Bull Bar Options: Low-height (TSS not compatible); Mid-height with 1.5" x .120 side support tubes (TSS compatible); Full-height with 1.5" x .120 side support tubes (TSS compatible)

Weight: 108 lbs

Materials:

• 3/16” steel main shell
• ¼” aluminum skid plate
• 1 ¾” x .120 wall DOM tubing
• Winch Mount: Fits 10K–12K winches (control box relocation may be needed)

Light Compatibility:

• Center: 30” S8 single-row light bar
• Side mounts: XL Squadron, Squadron, or S2 lights
• Fairlead mount: Recessed into skid plate
• D-ring mounts: 1” thick billet steel, fully welded
• Shackles: Designed for ¾” shackles with ⅞” pin
• Frame supports: Included (mount through the frame)
• Skid Plate: Works with TRD skid plates

Finish: Ships raw

Bull Bar Options:

• Low-height (TSS not compatible)
• Mid-height with 1.5” x .120 side support tubes (TSS compatible)
• Full-height with 1.5” x .120 side support tubes (TSS compatible)


Estimated lead time: 8-10 weeks

Note: Bumpers are made to order and can not be canceled after production begins.
