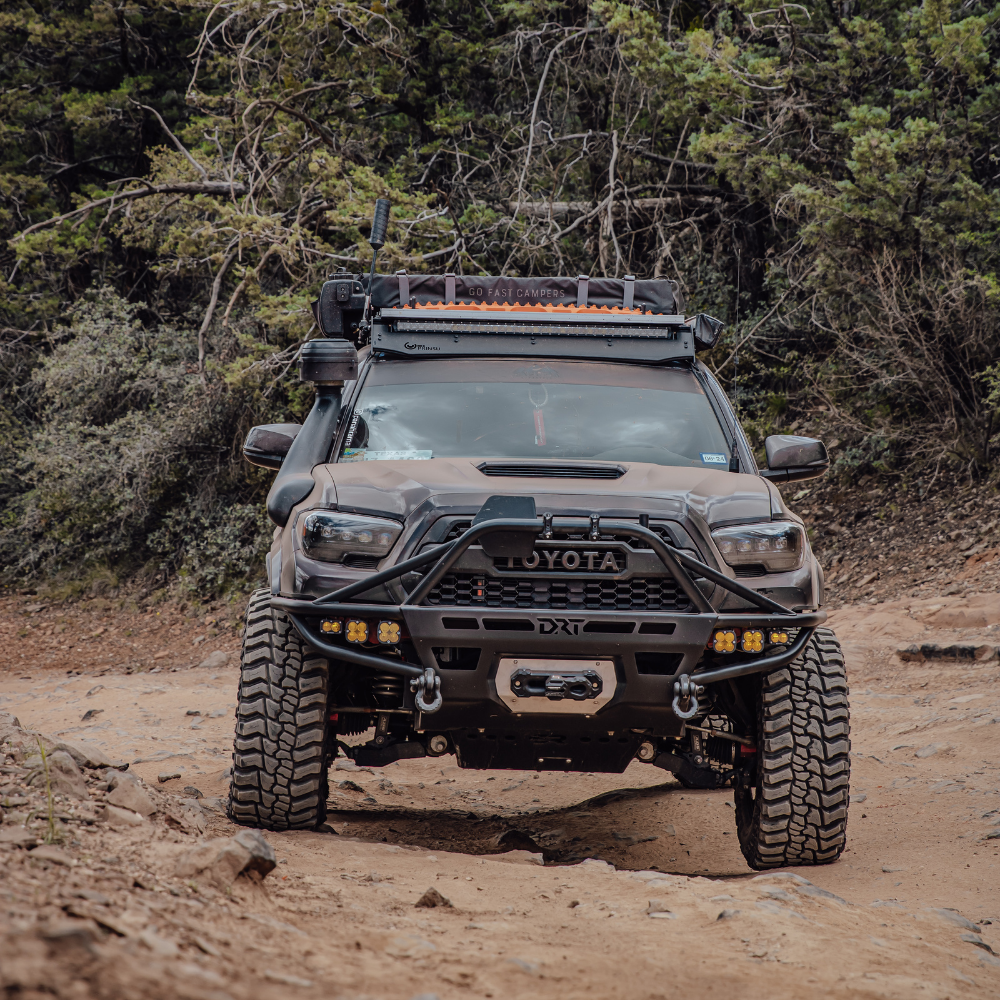

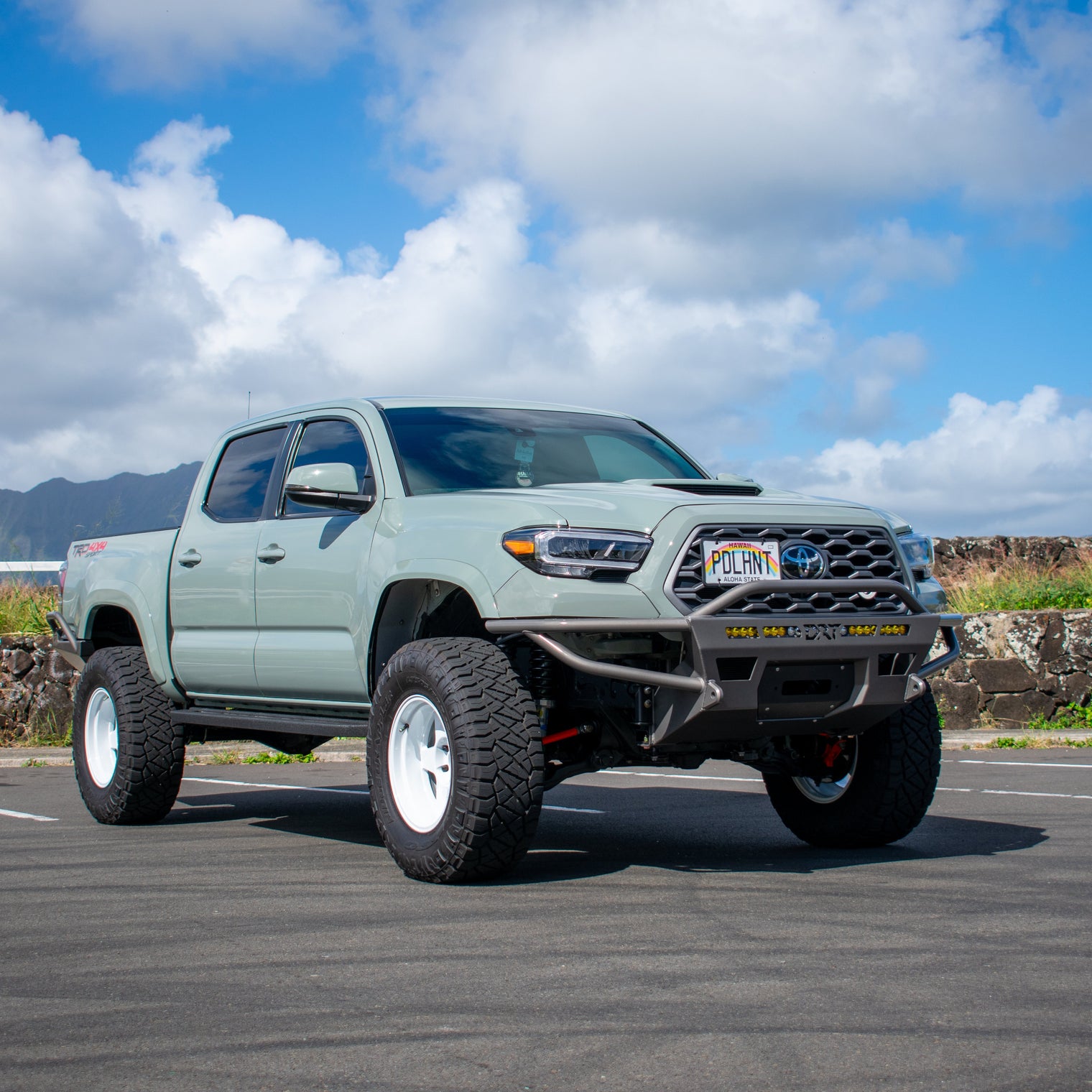

Tacoma Hybrid Front Bumper / 3rd gen / 2016-2023
Description

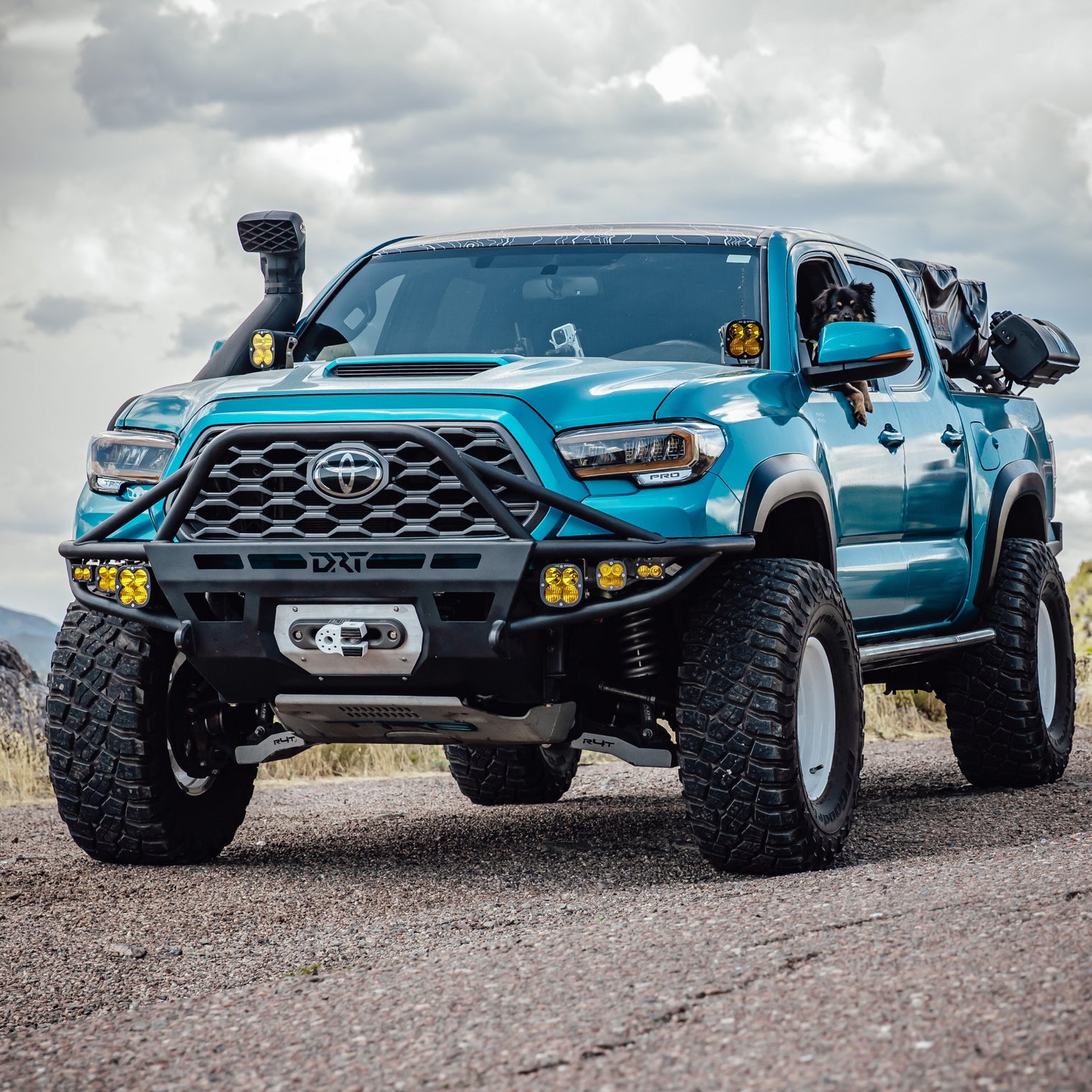

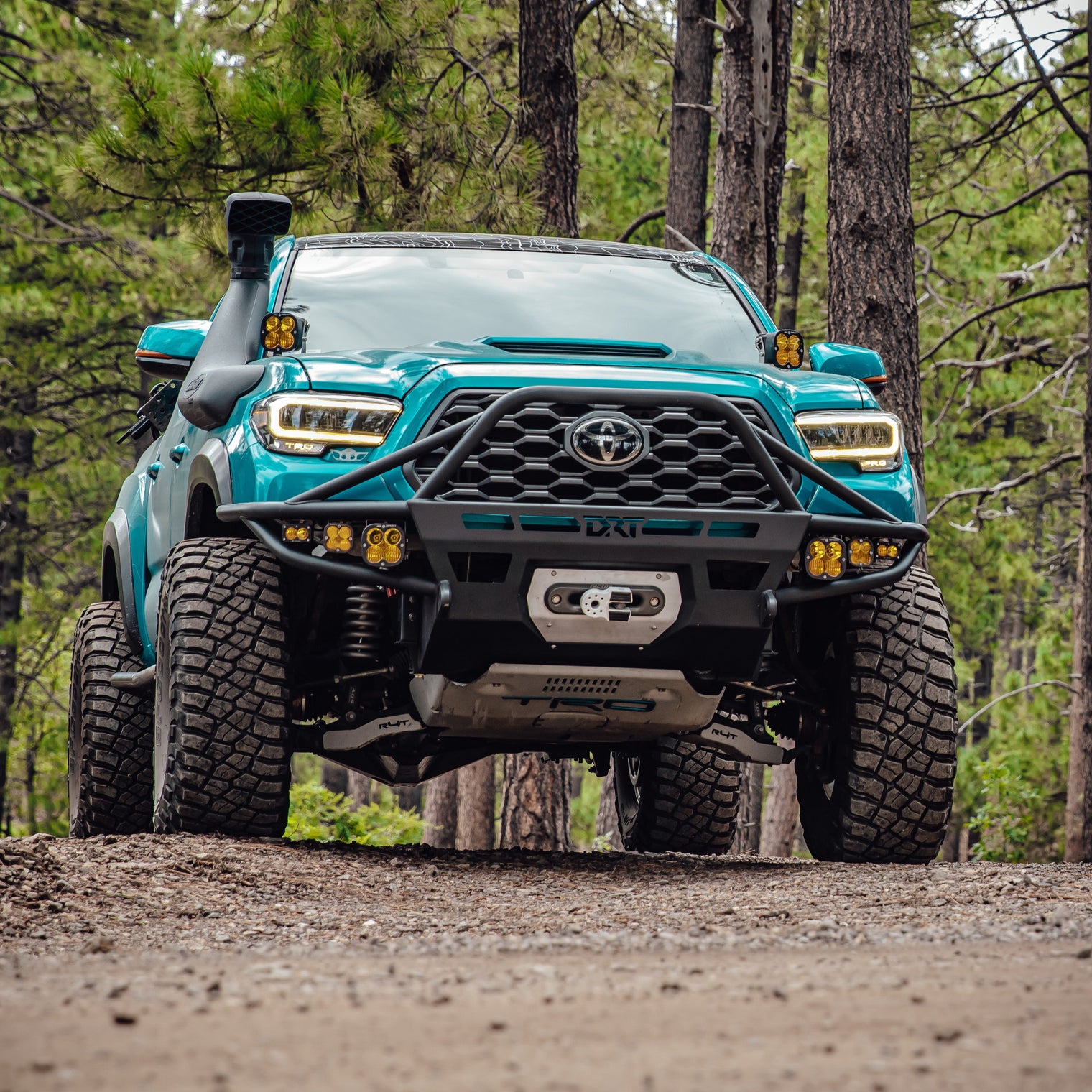

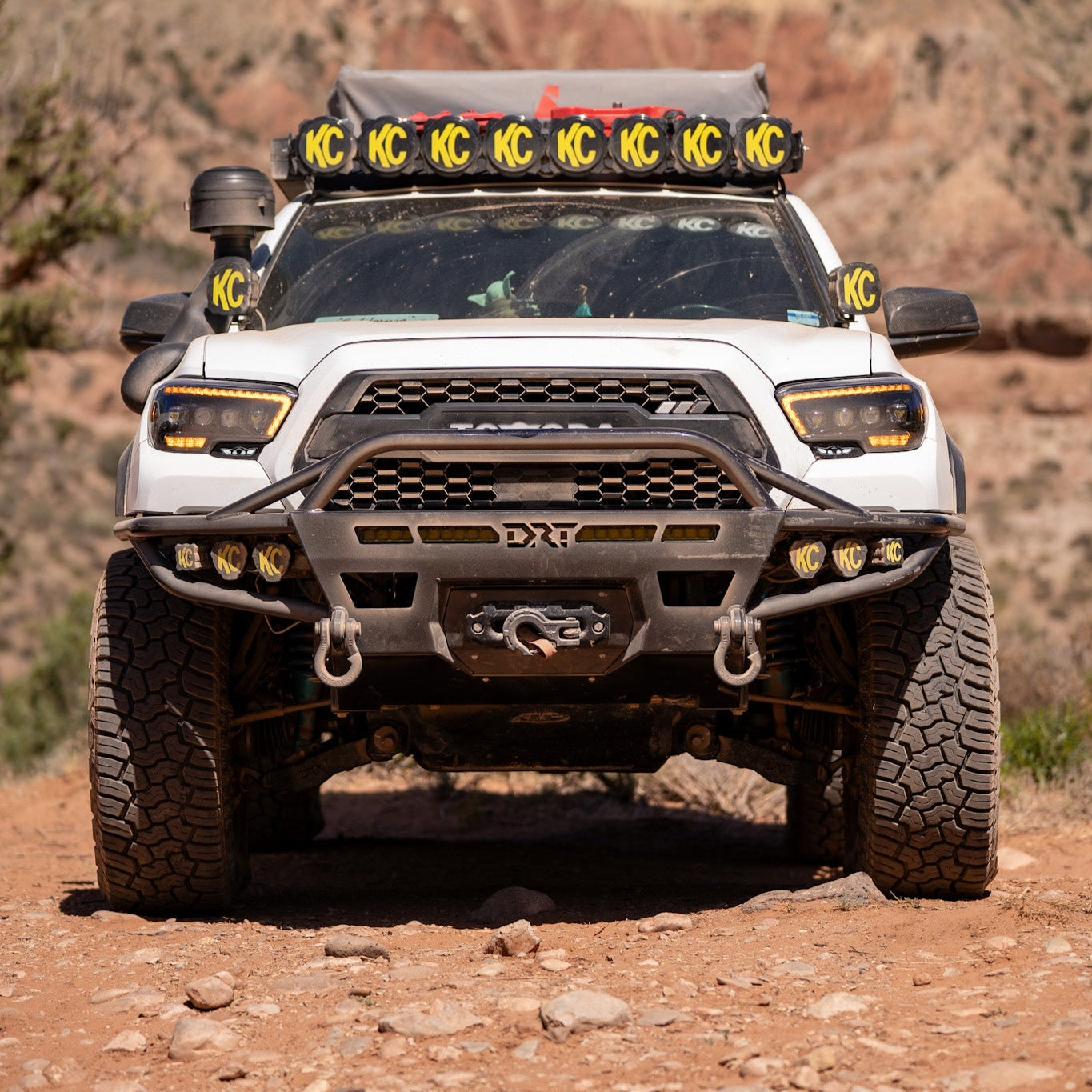

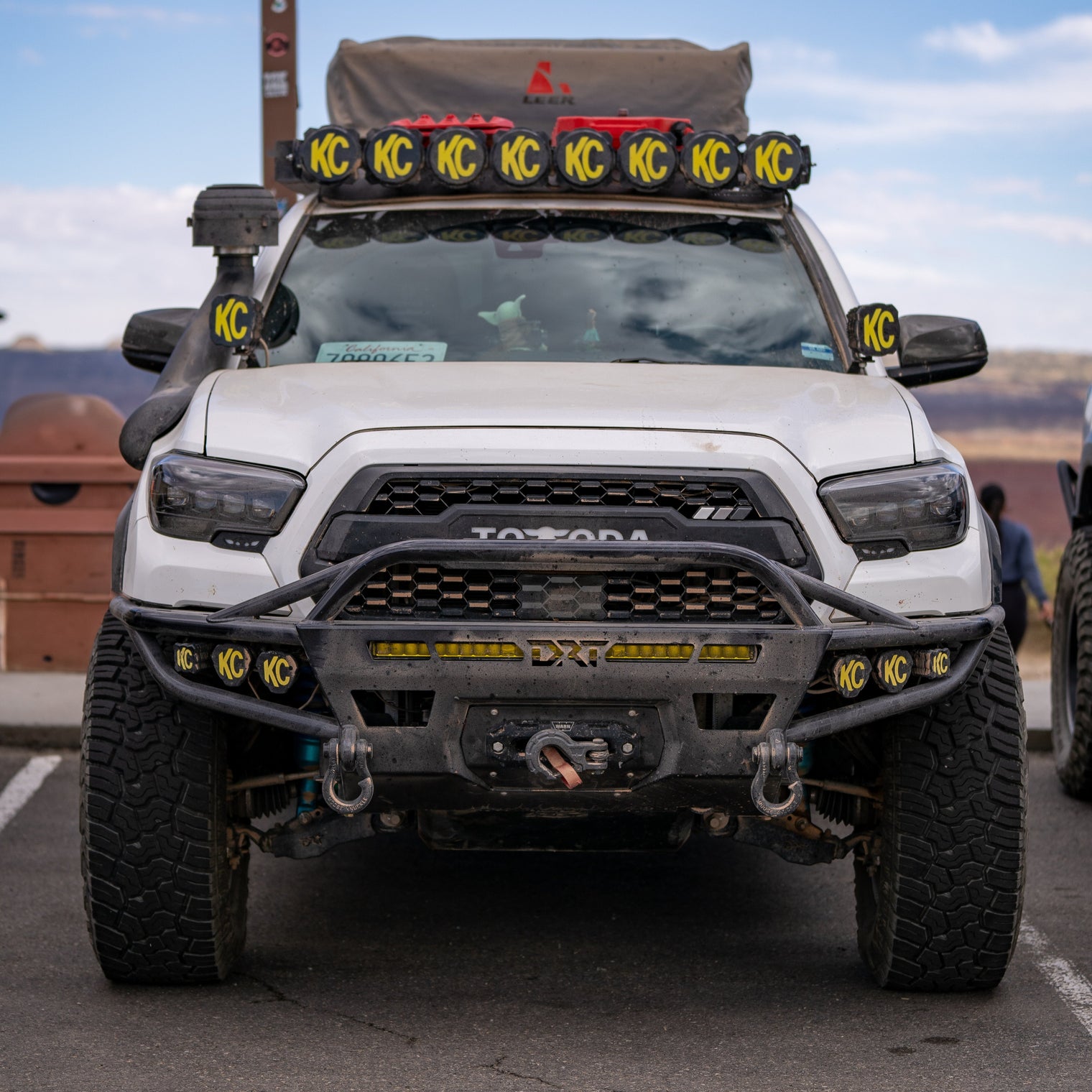

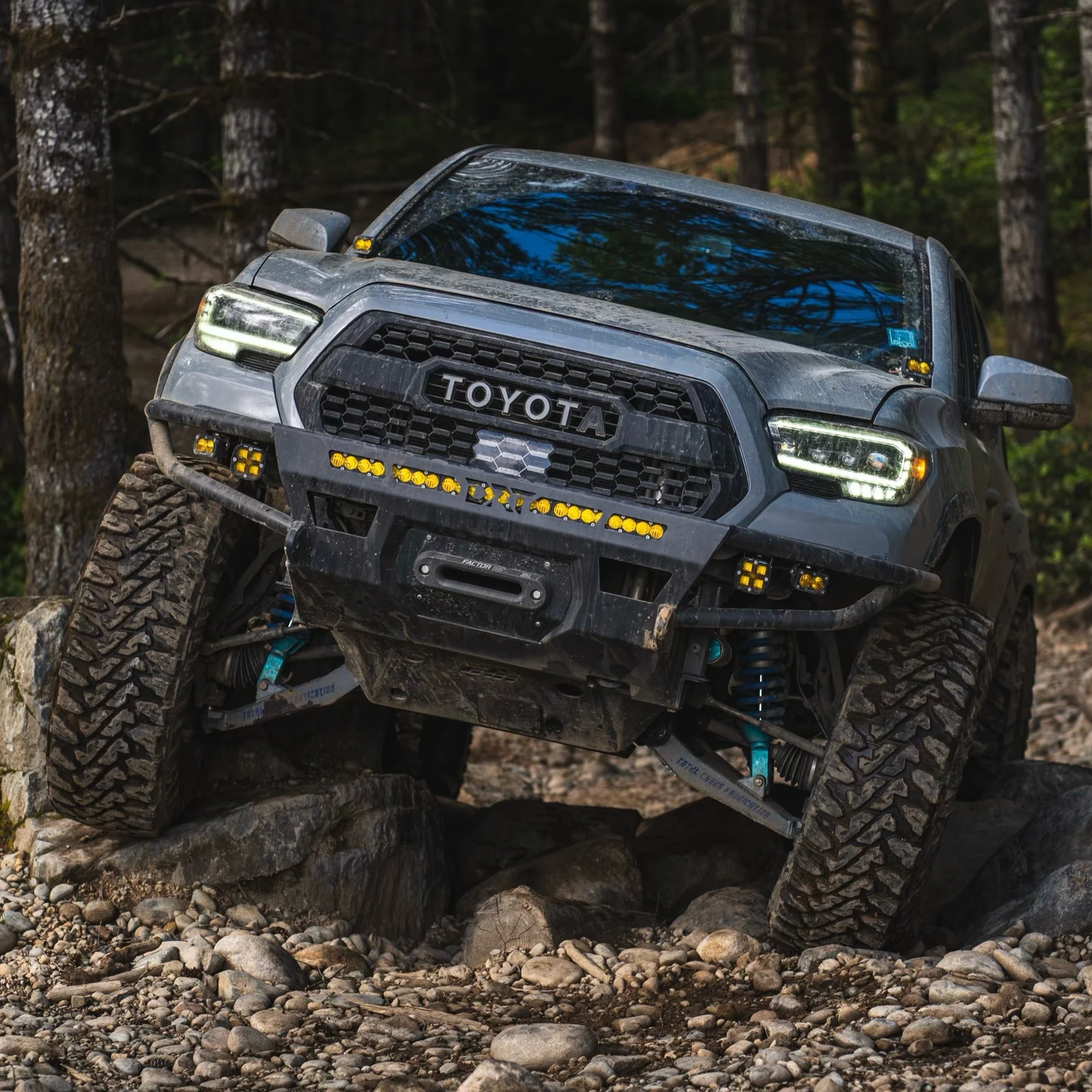

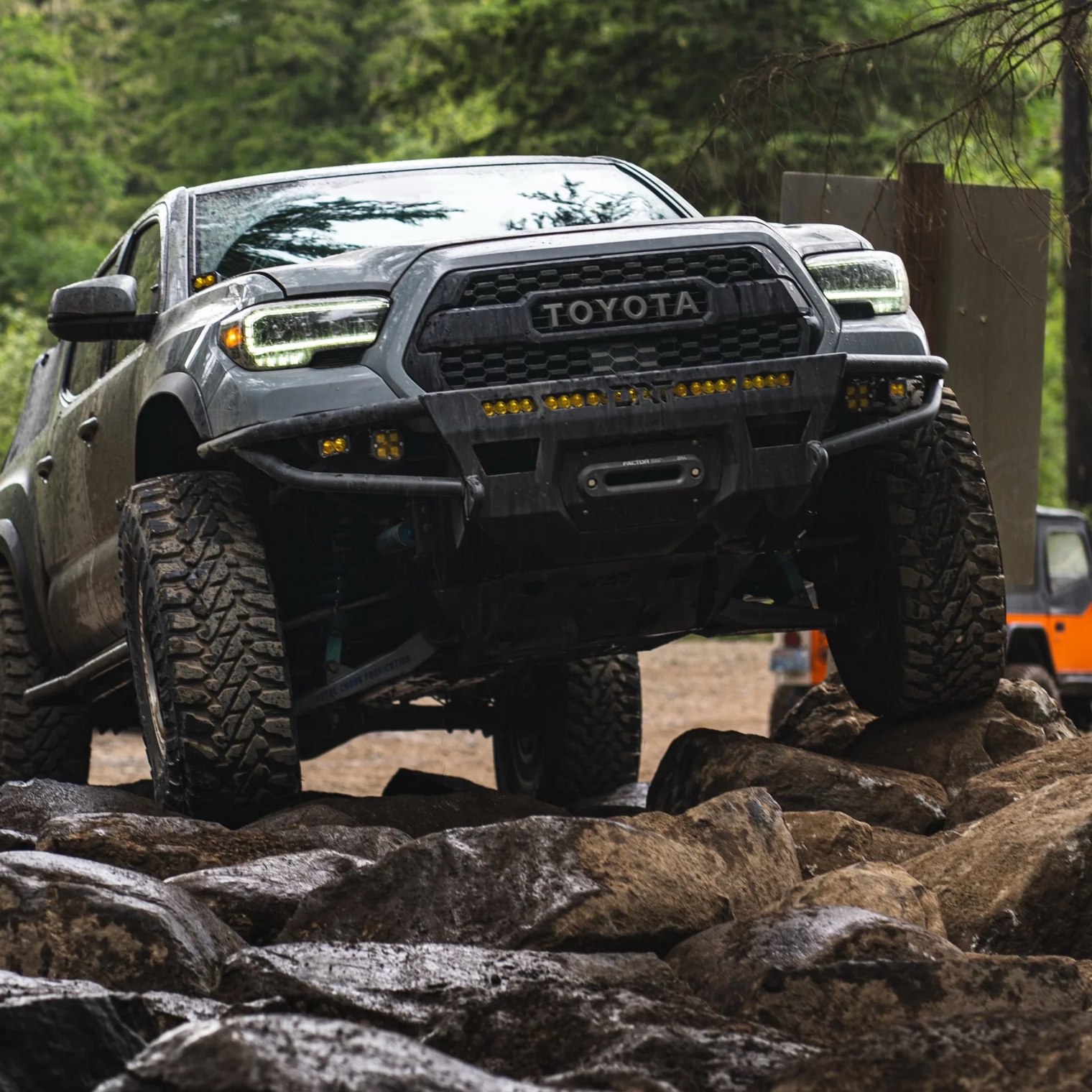

Upgrade your 2016–2023 Toyota Tacoma with a front bumper engineered for serious off-road use. This 3rd Gen Tacoma front bumper combines rugged protection with smart functionality—built for those who demand performance without compromise.

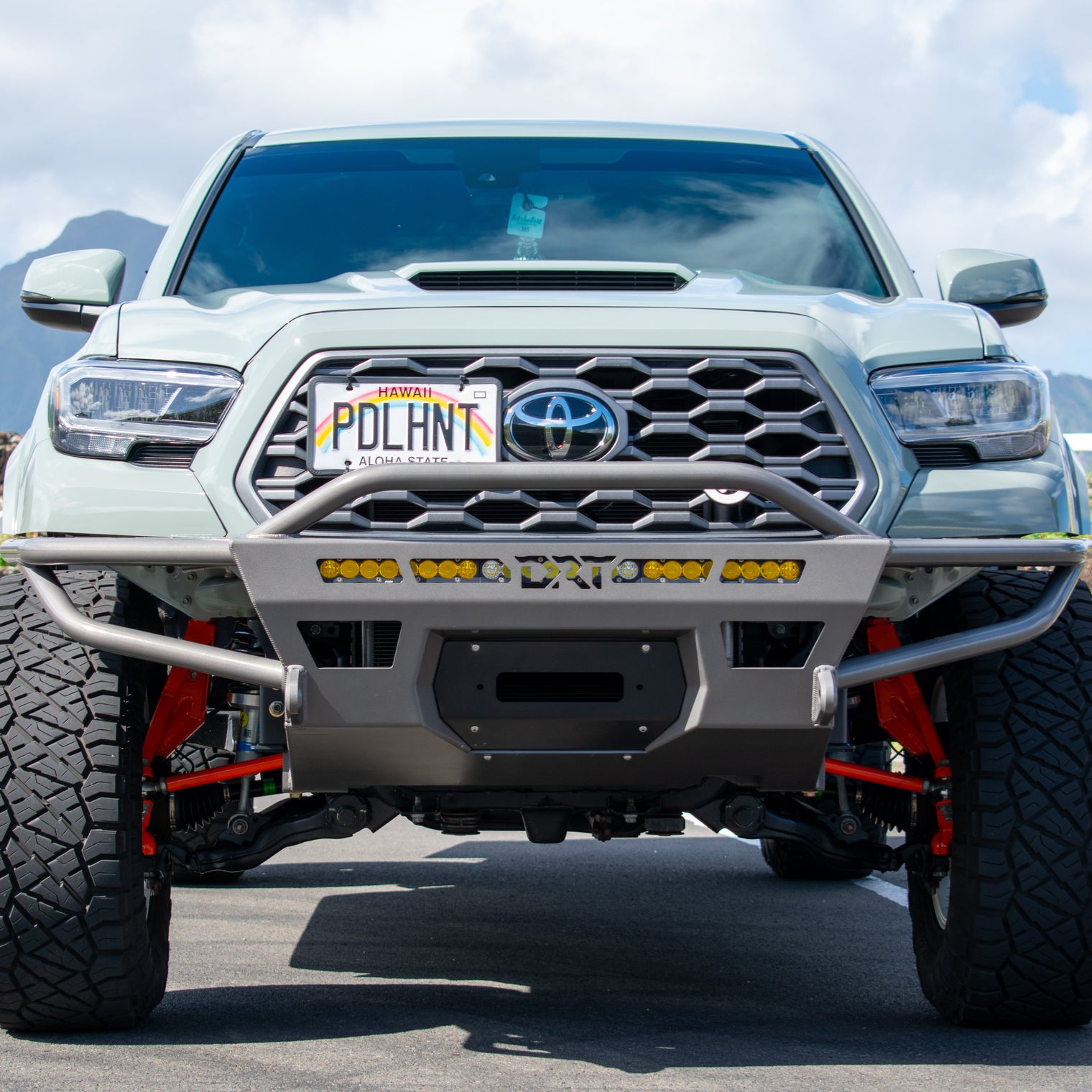

Crafted from premium U.S.-sourced materials, this bumper is designed for strength, durability, and maximum clearance. It features a winch mount that supports 10K–12K winches (some models may require control box relocation), integrated light mounts compatible with Baja Designs XL Squadron, Squadron, S2, and a 30” S8 single-row light bar, and a recessed fairlead mounting point on a ¼” aluminum skid plate secured with 5/16 stainless hardware.
Additional frame support brackets are included standard, designed to mount through the frame rather than on it—ensuring no interference with aftermarket shock reservoirs like King, Fox, or ADS.
Optional bull bar configurations (low, mid, or full-height) are available to match your setup and TSS compatibility needs.
Note: This bumper ships raw and does not come powder coated. Finishing is recommended before installation.
Specs
Weight: 108 lbs
Materials:

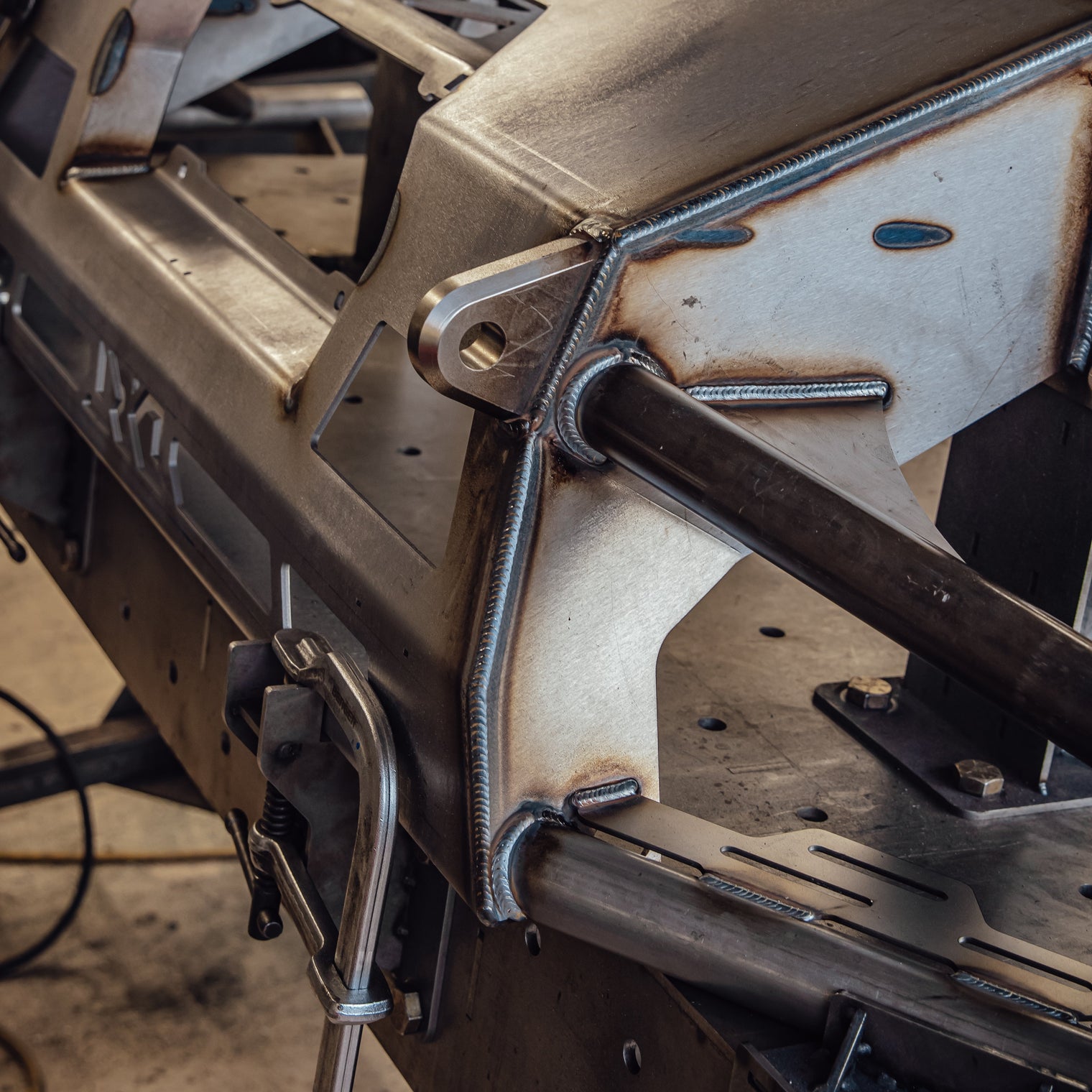

- 3/16” steel main shell
- ¼” aluminum skid plate
- 1 ¾” x .120 wall DOM tubing
- Winch Mount: Fits 10K–12K winches (control box relocation may be needed)
Light Compatibility:
- Center: 30” S8 single-row light bar
- Side mounts: XL Squadron, Squadron, or S2 lights
- Fairlead mount: Recessed into skid plate

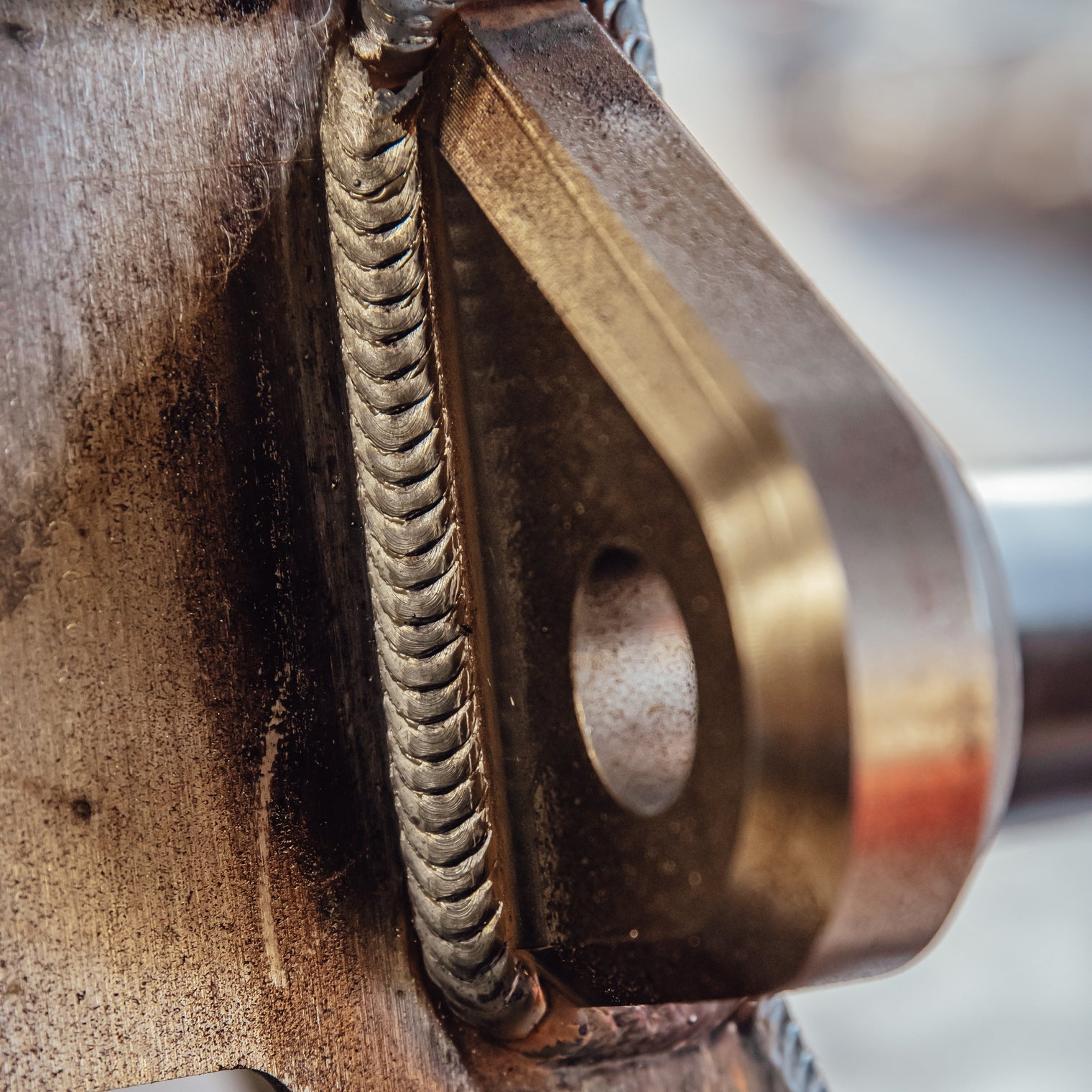

- D-ring mounts: 1” thick billet steel, fully welded
- Shackles: Designed for ¾” shackles with ⅞” pin
- Frame supports: Included (mount through the frame)
- Skid Plate: Works with TRD skid plates
Finish: Ships raw

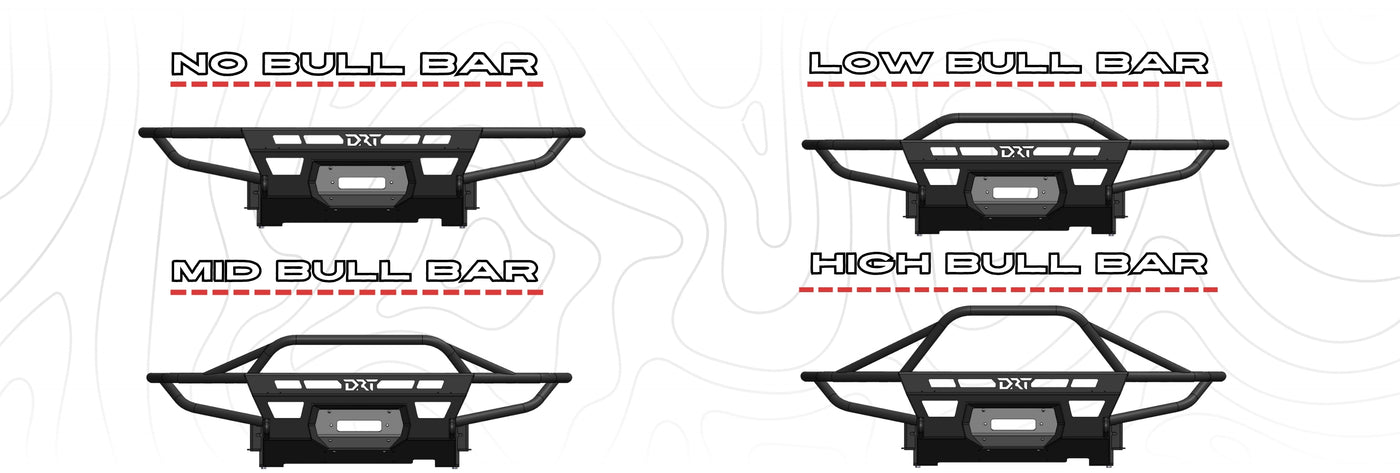

Bull Bar Options:
- Low-height (TSS not compatible)
- Mid-height with 1.5” x .120 side support tubes (TSS compatible)
- Full-height with 1.5” x .120 side support tubes (TSS compatible)
Lead Times
Estimated lead time: 6–8 weeks.
