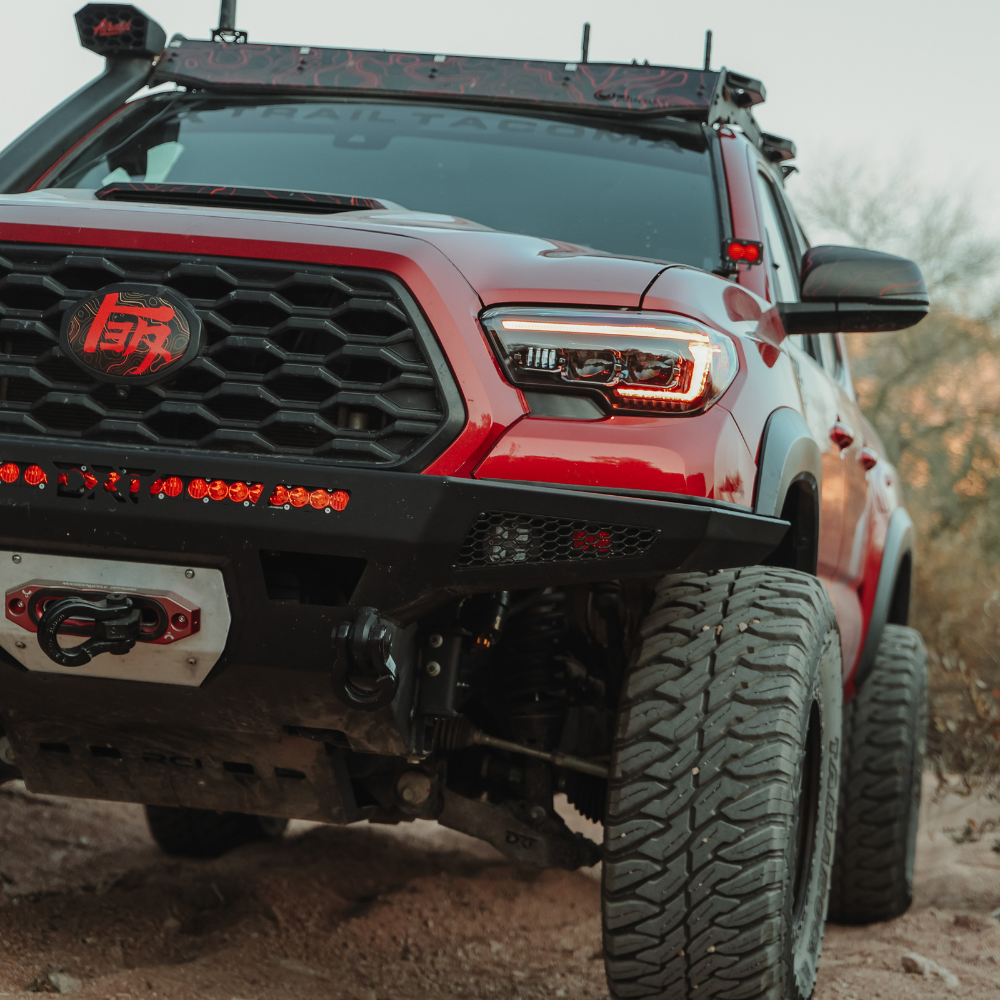

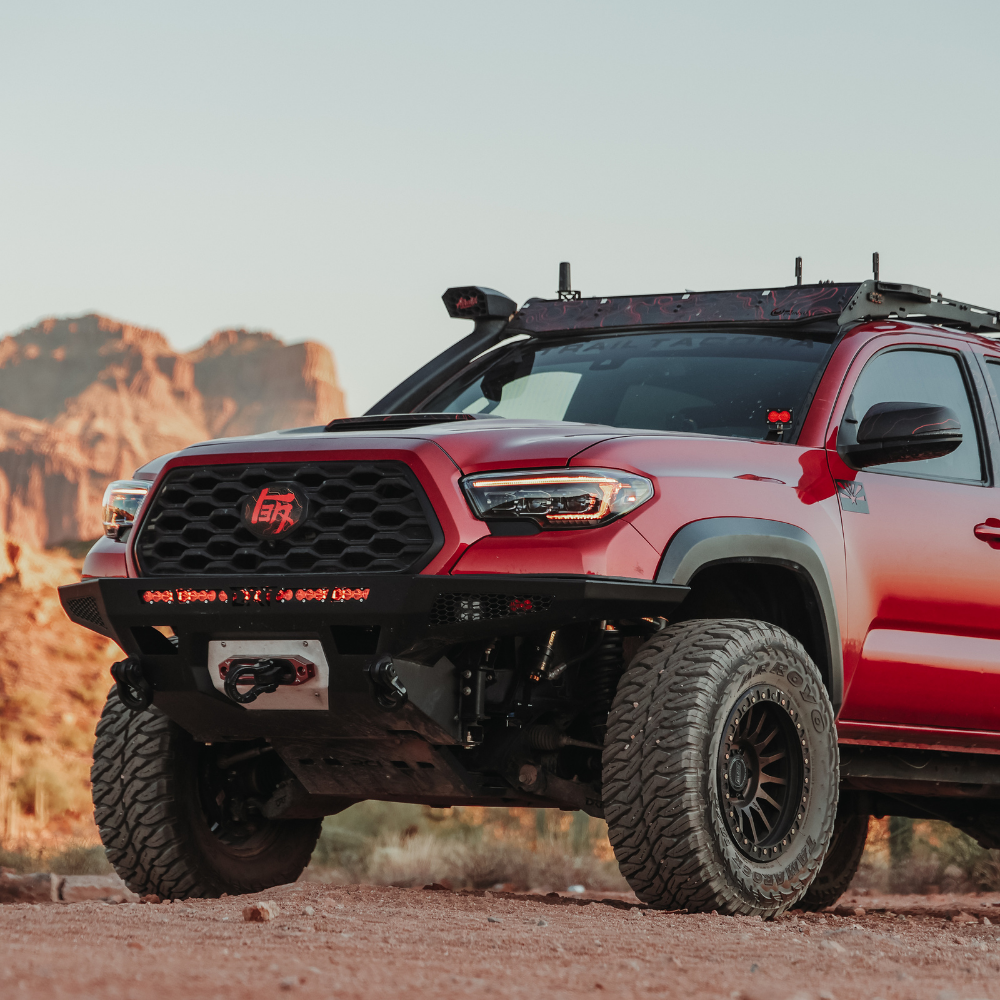

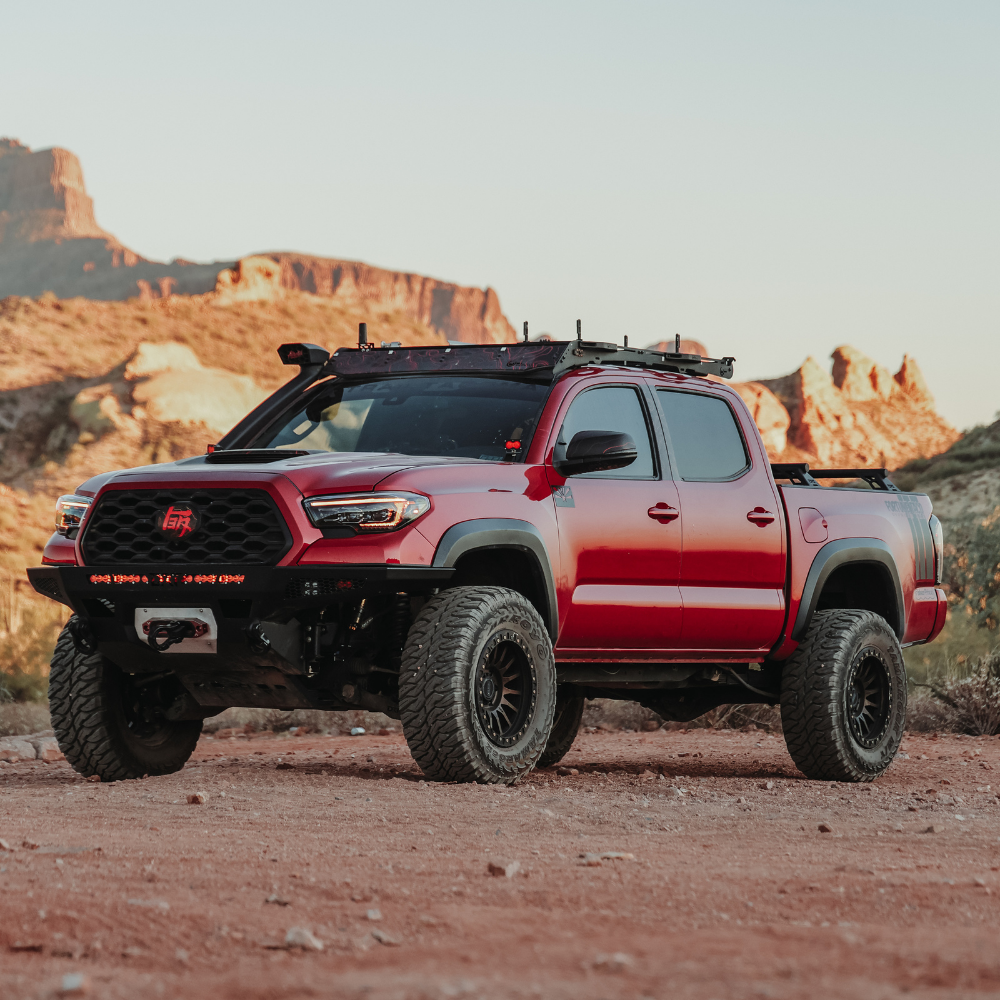

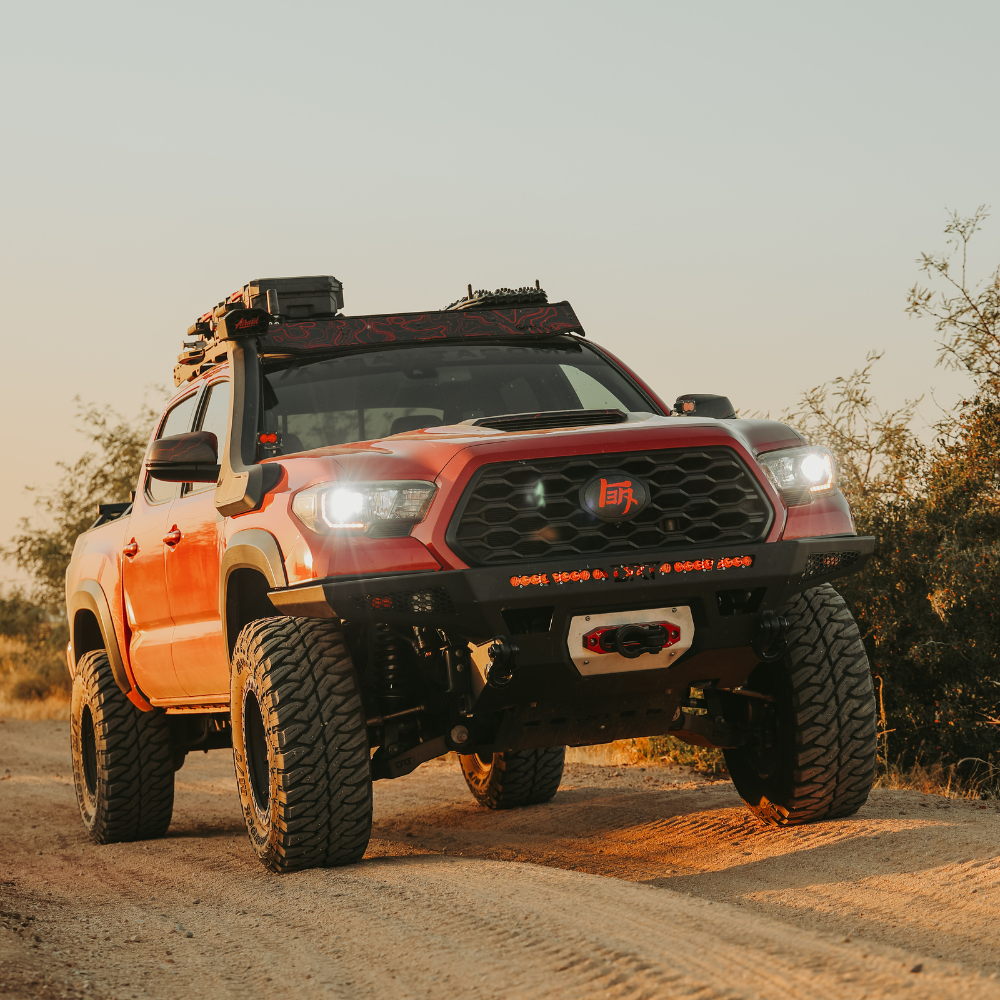

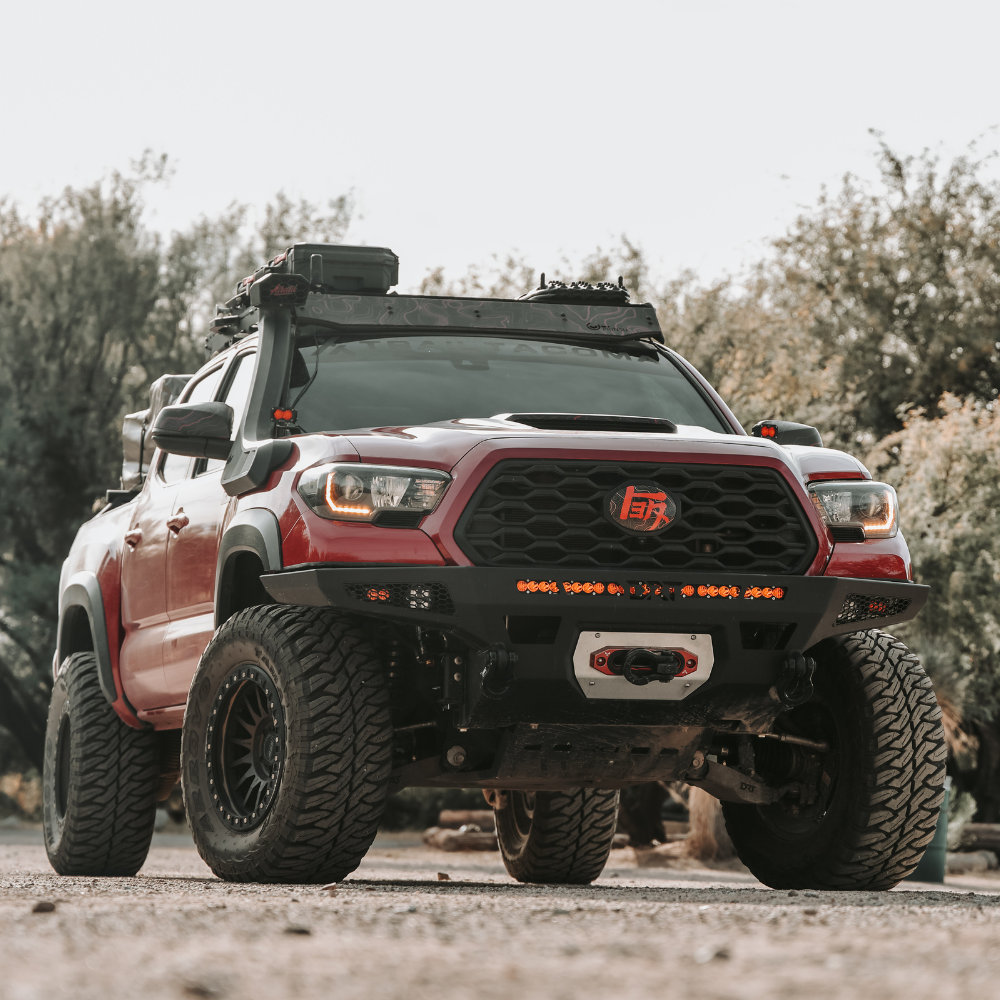

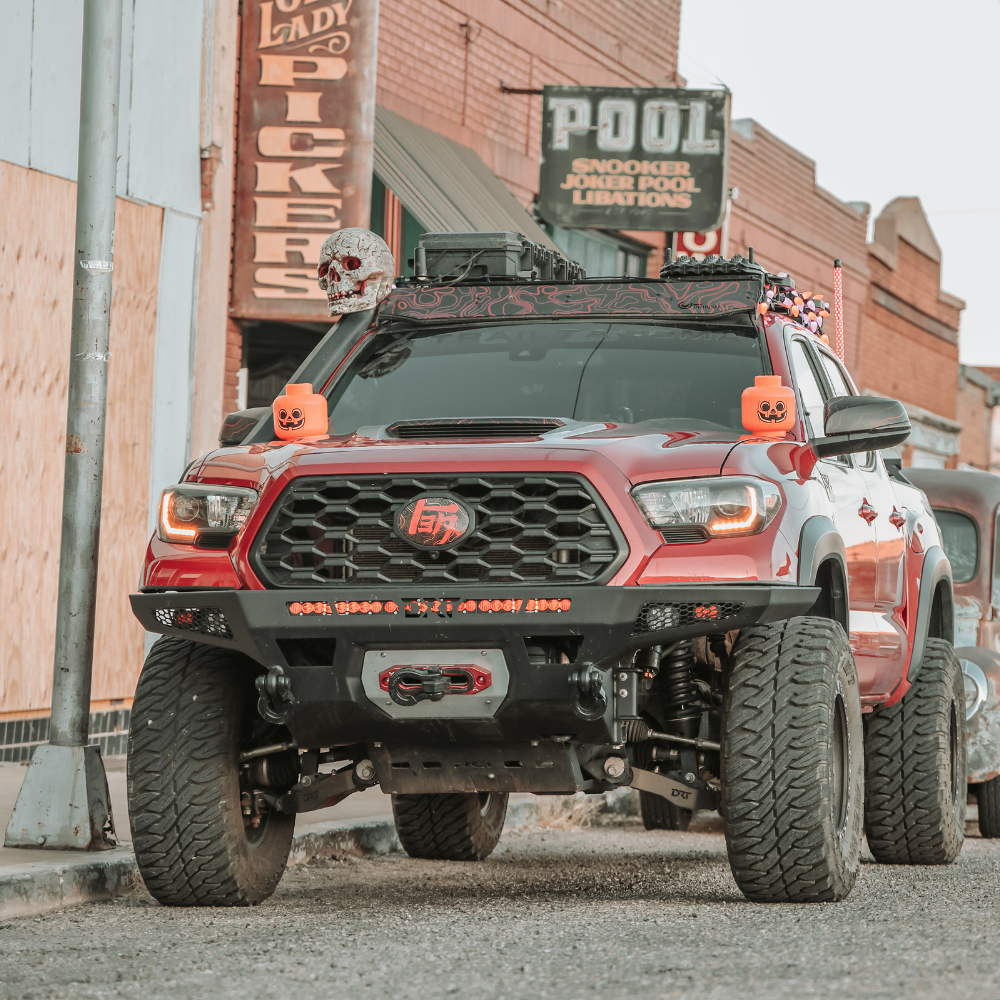

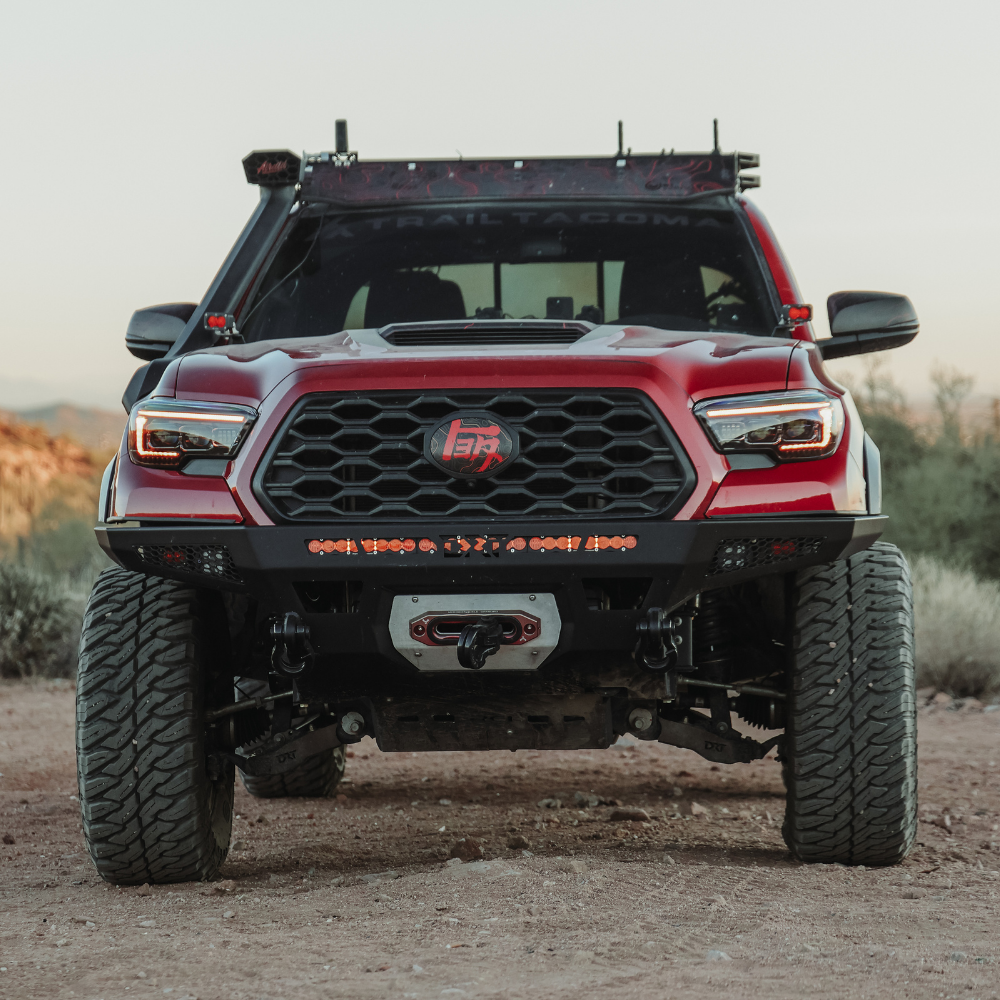

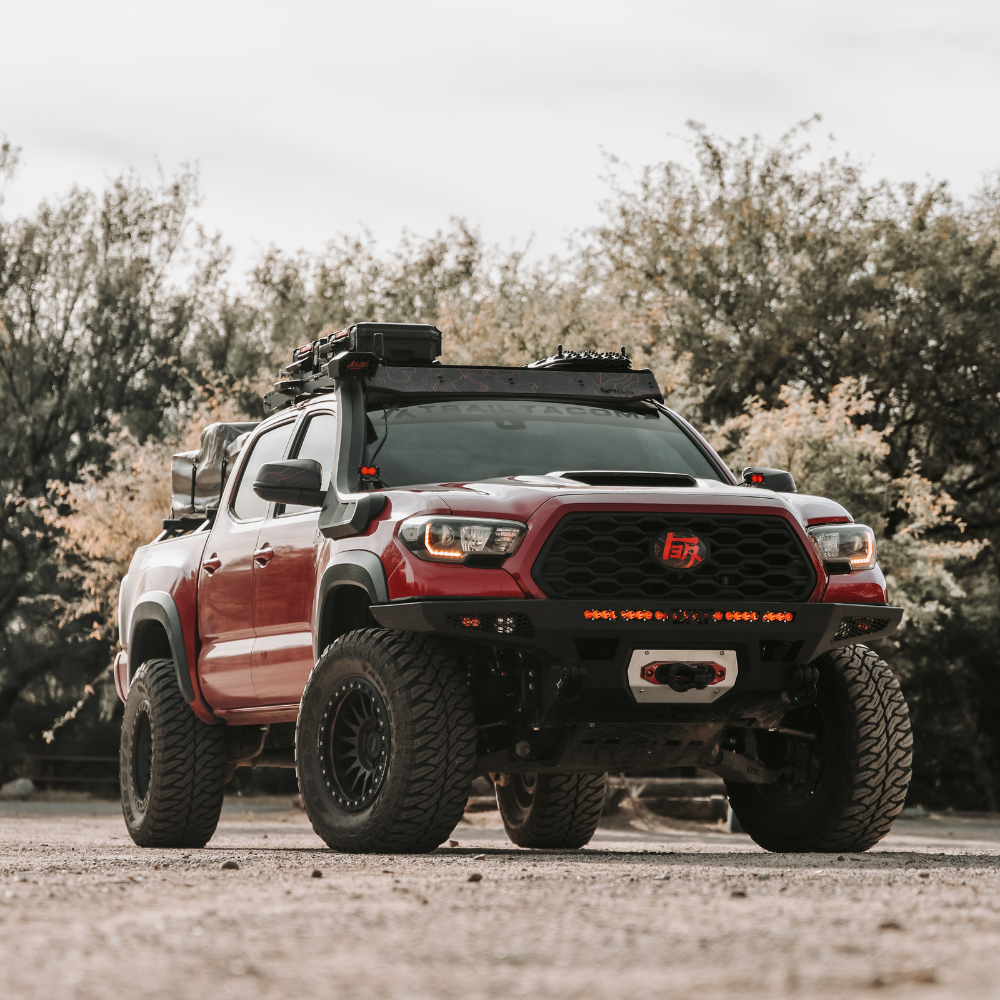

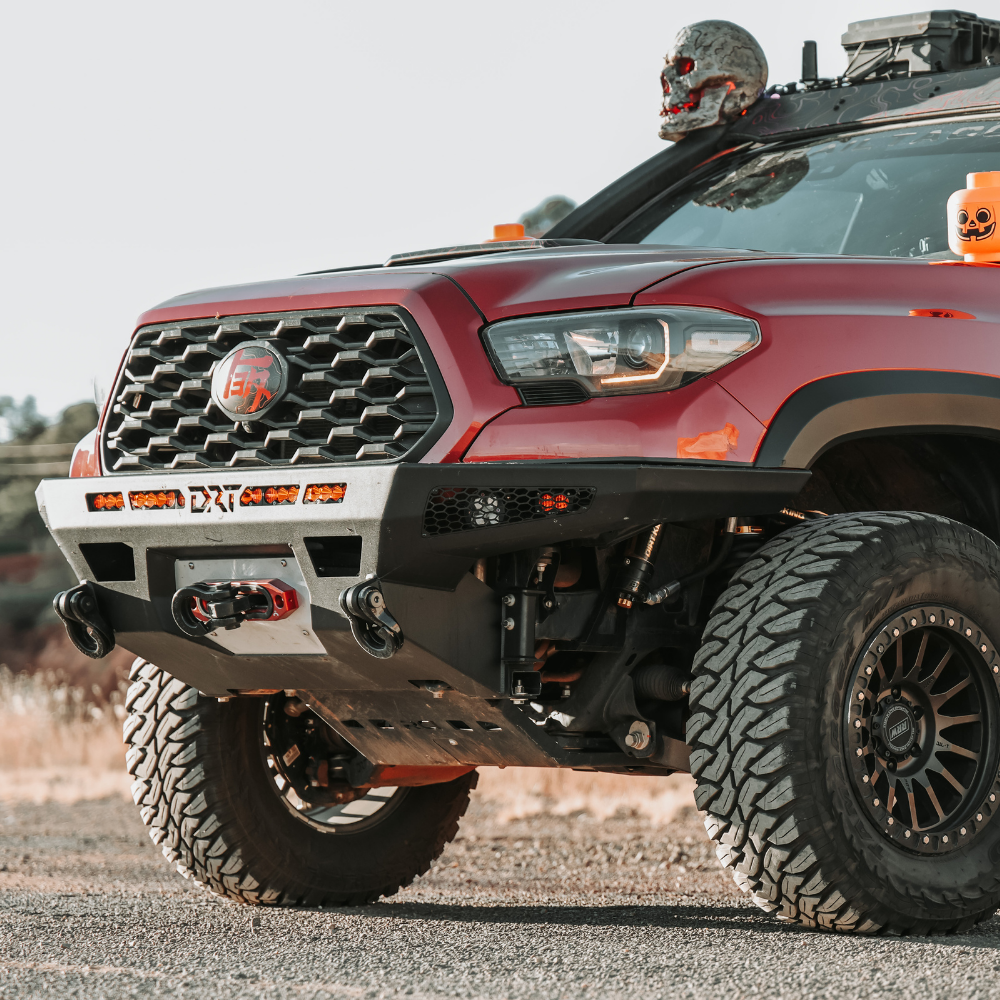

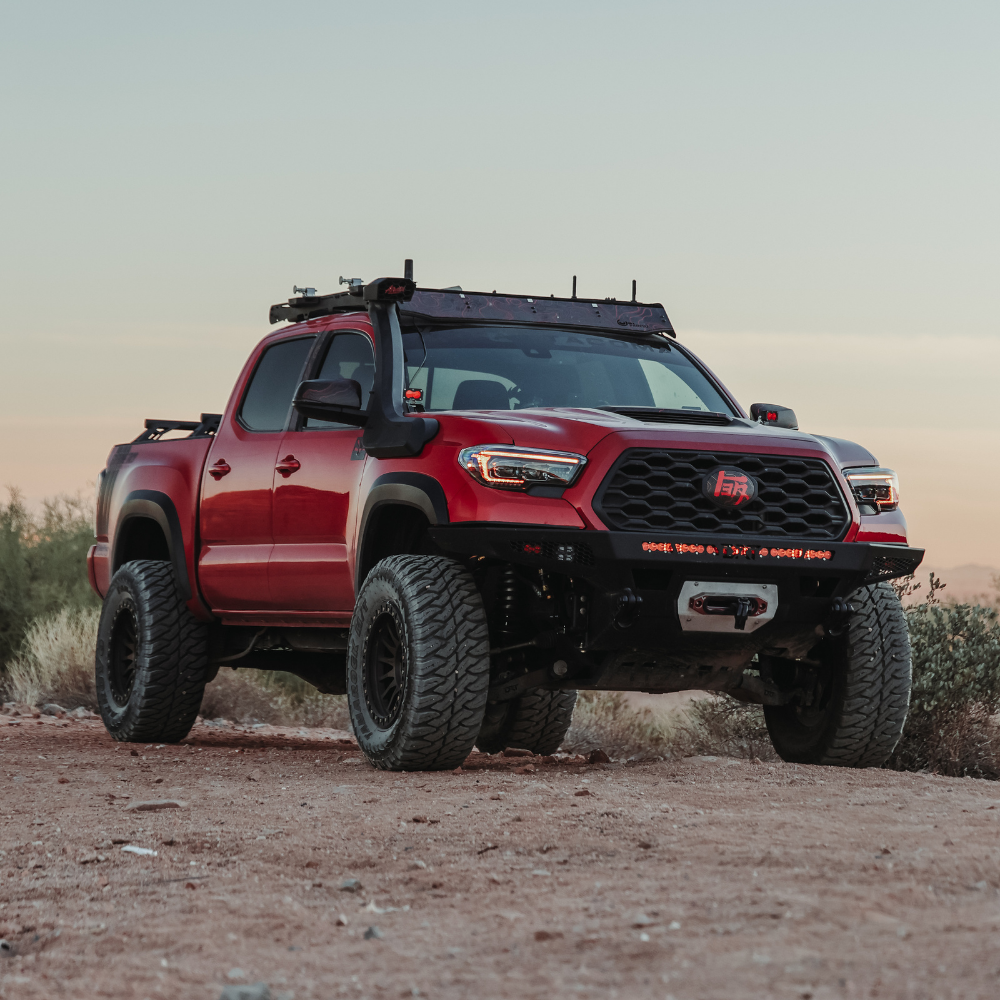

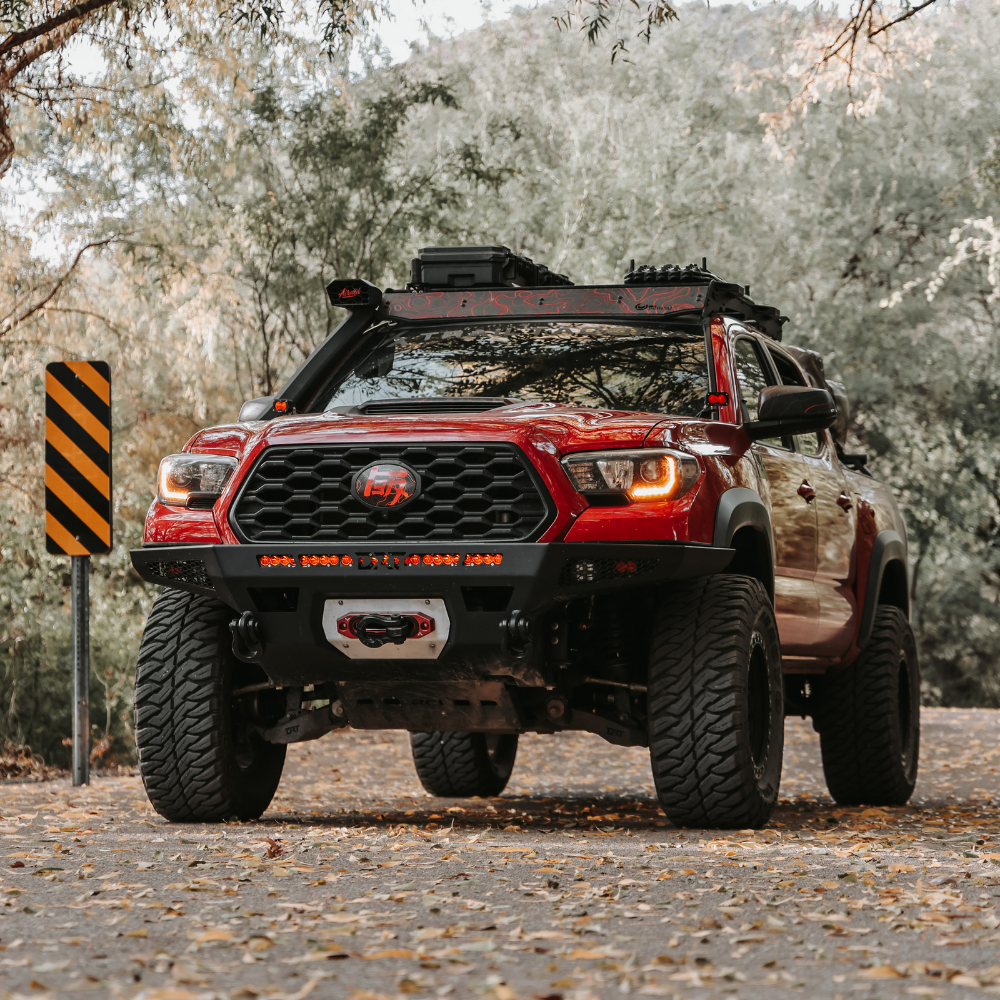

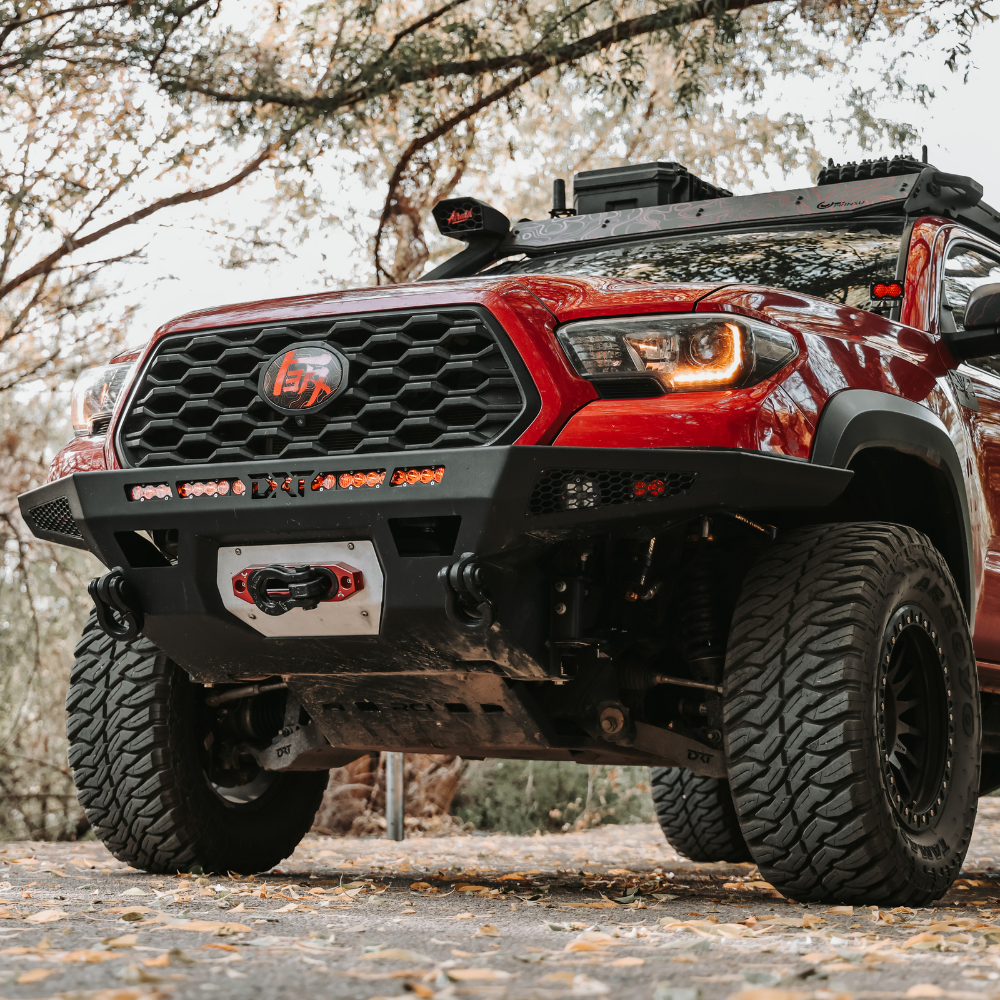

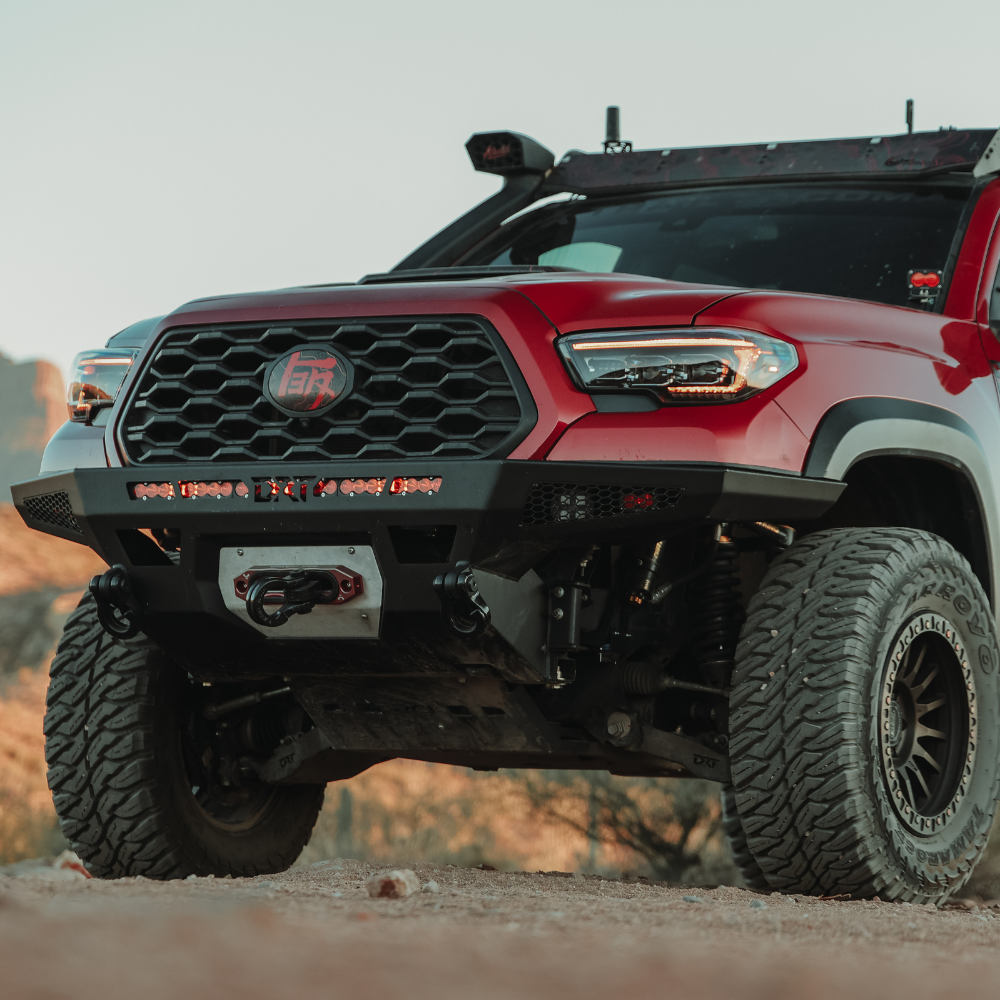

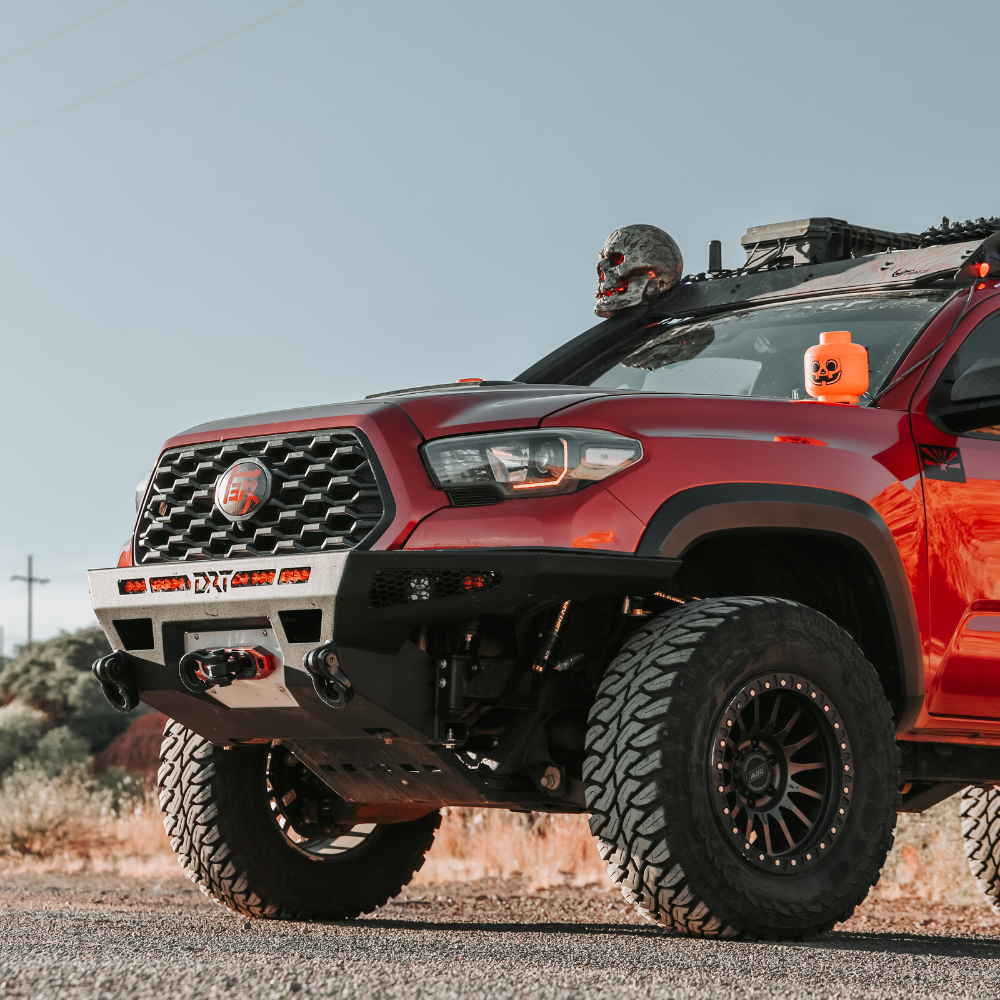

Tacoma Plated Front Bumper / 3rd Gen / 2016-2023
Description

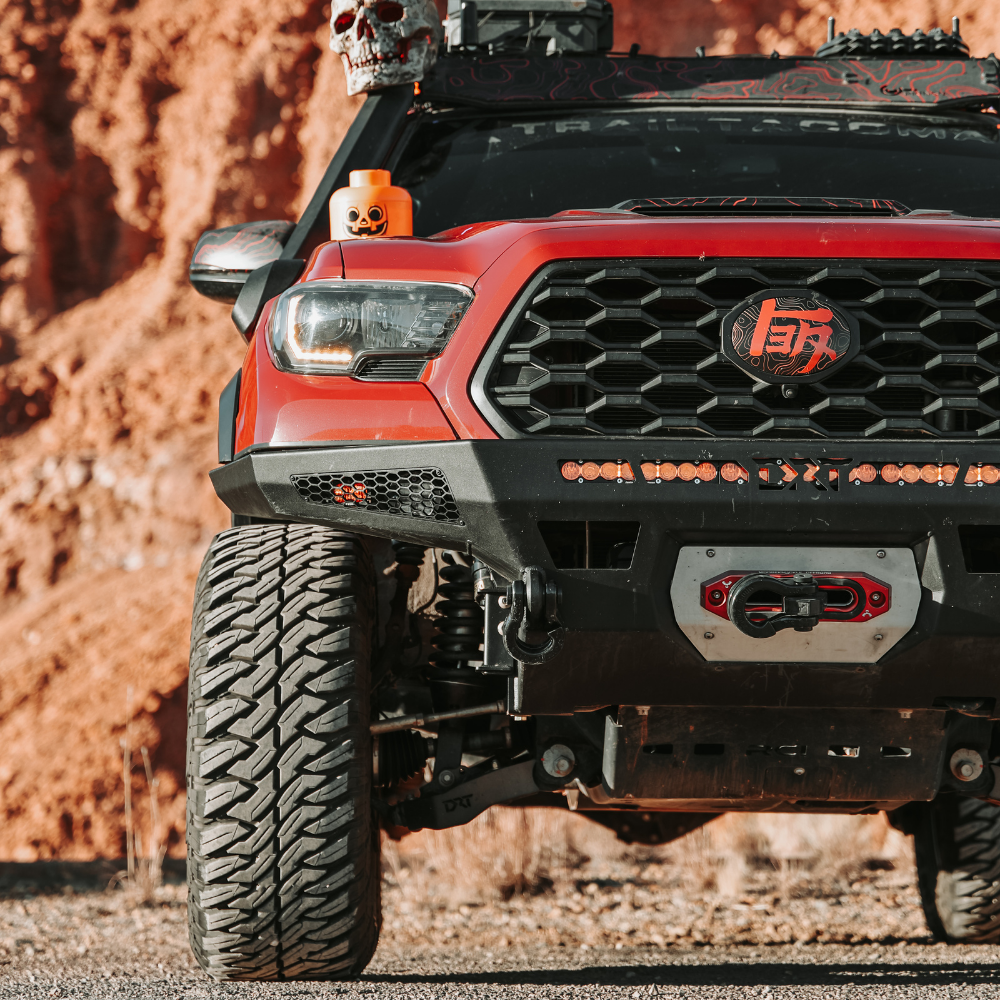

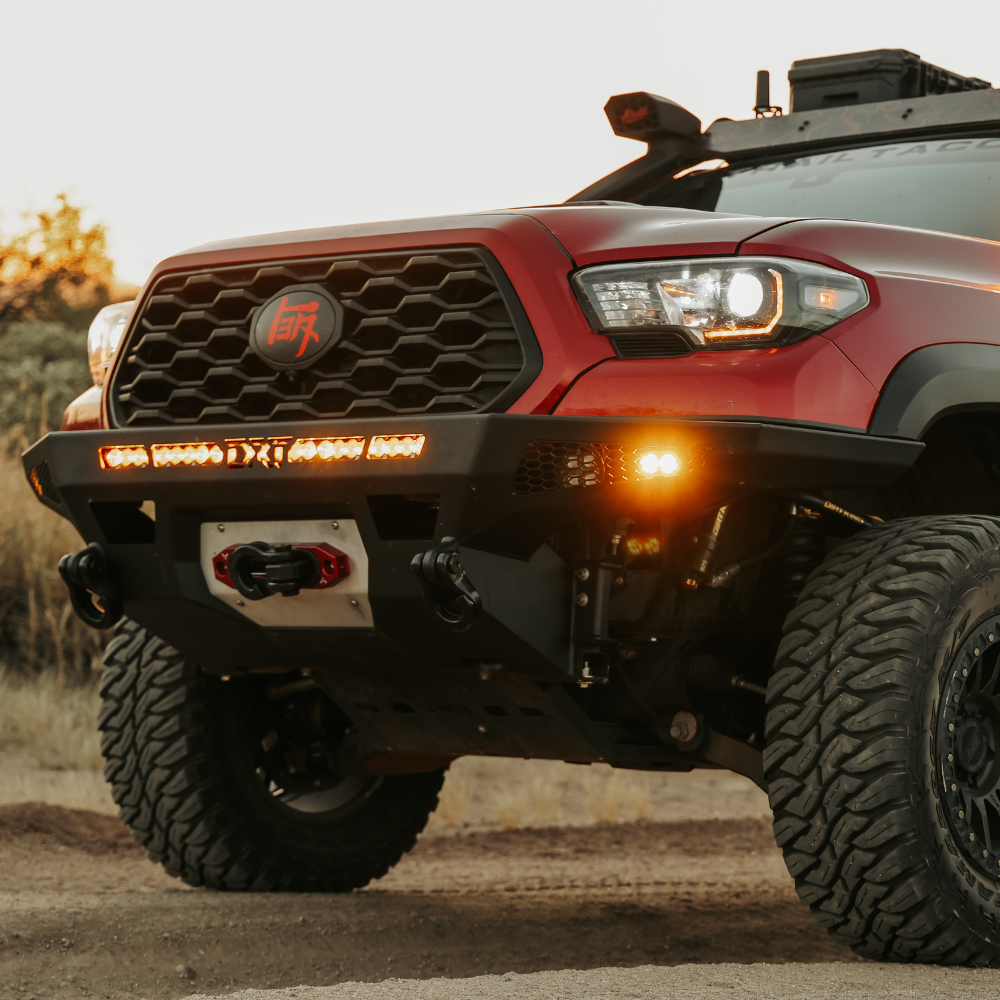

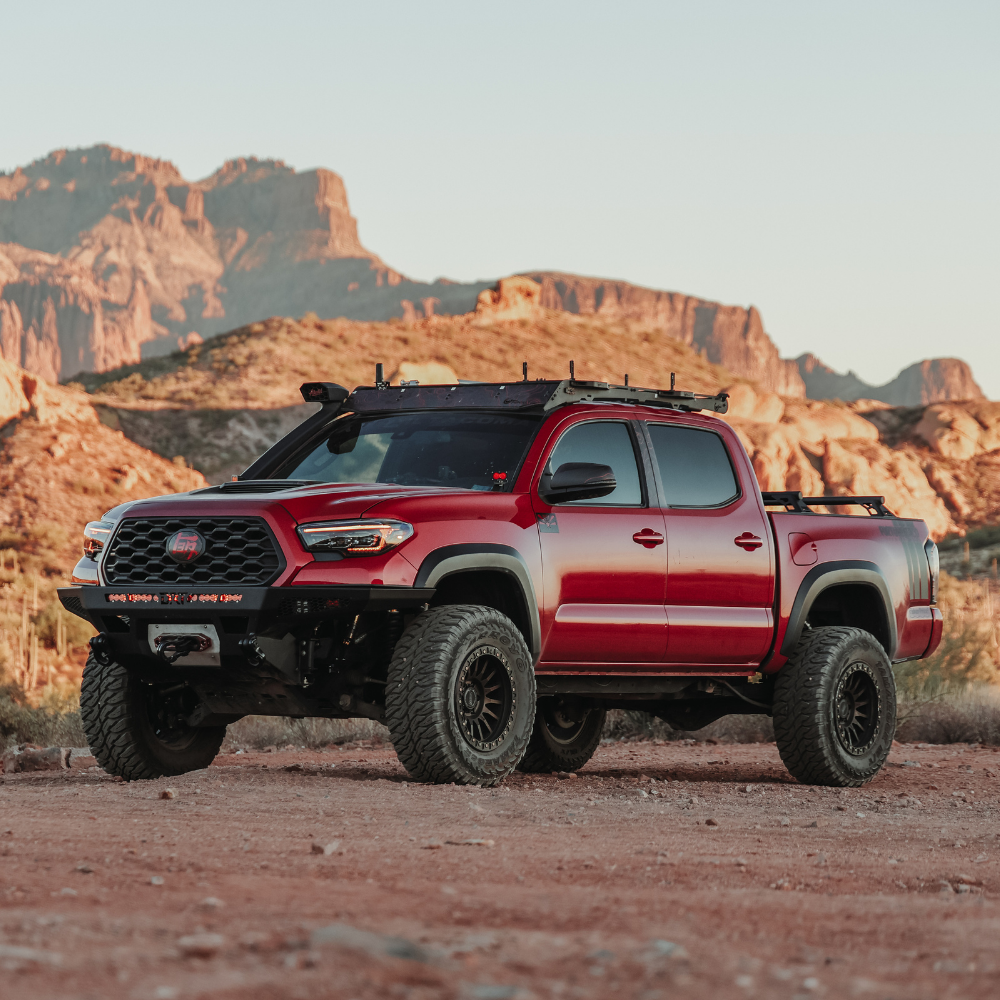

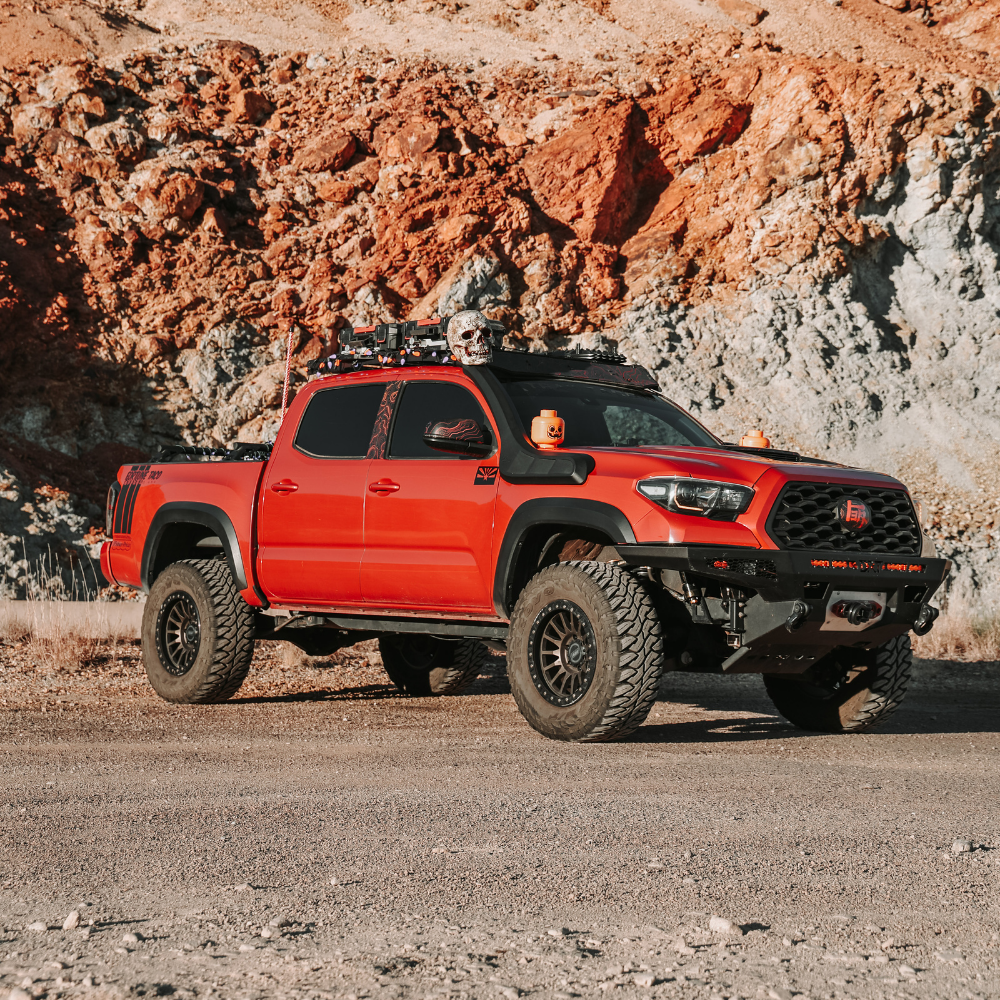

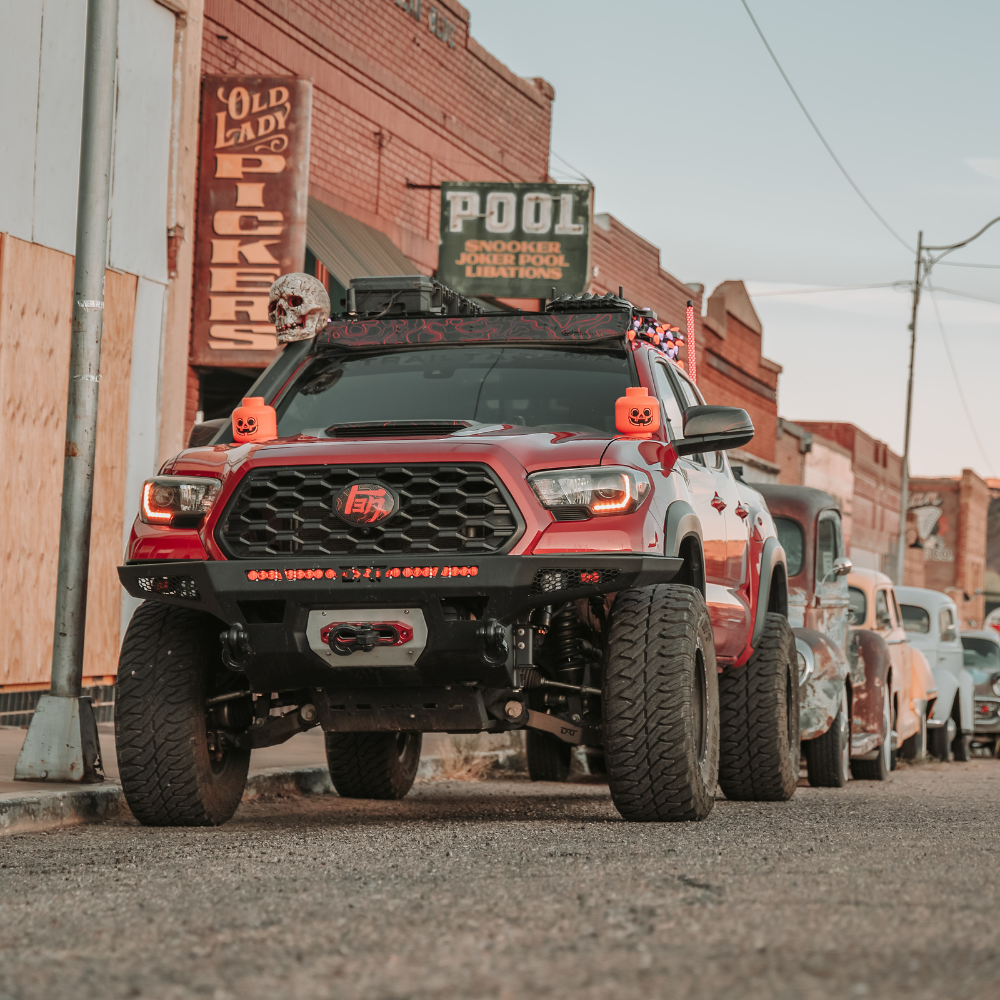

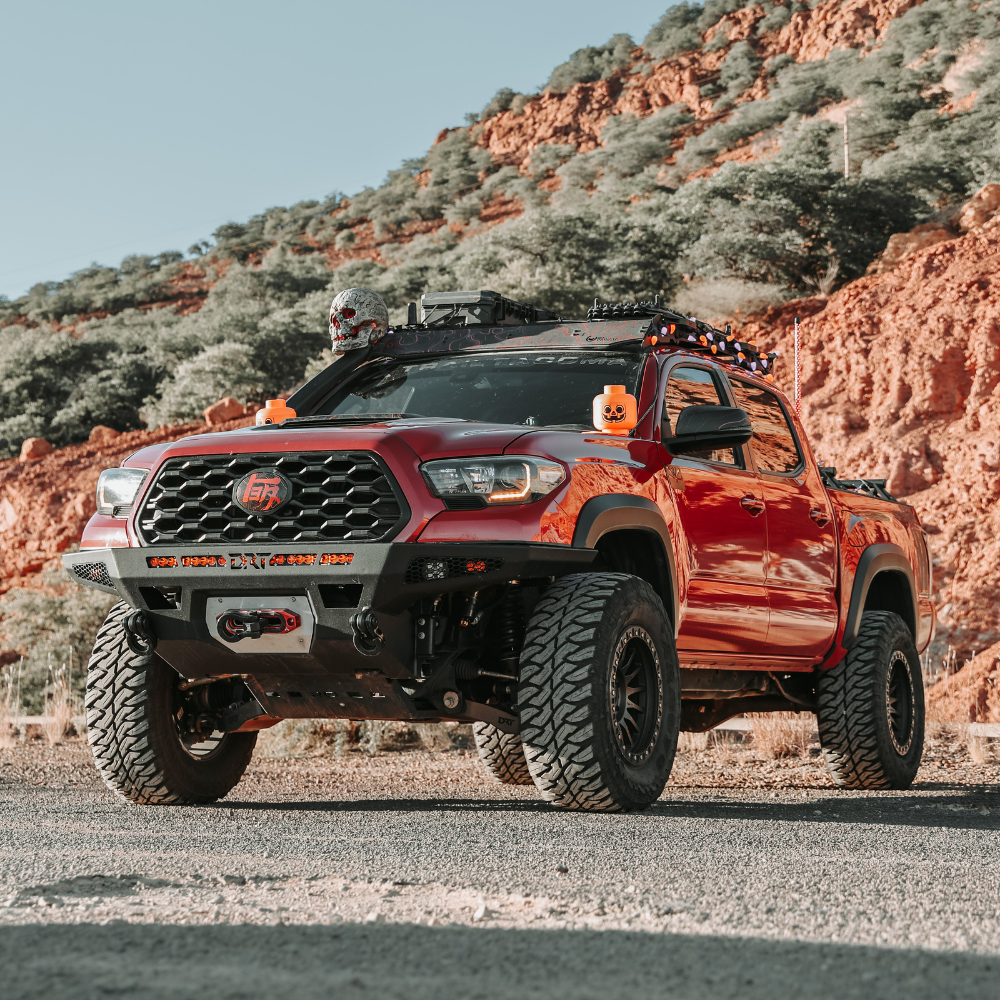

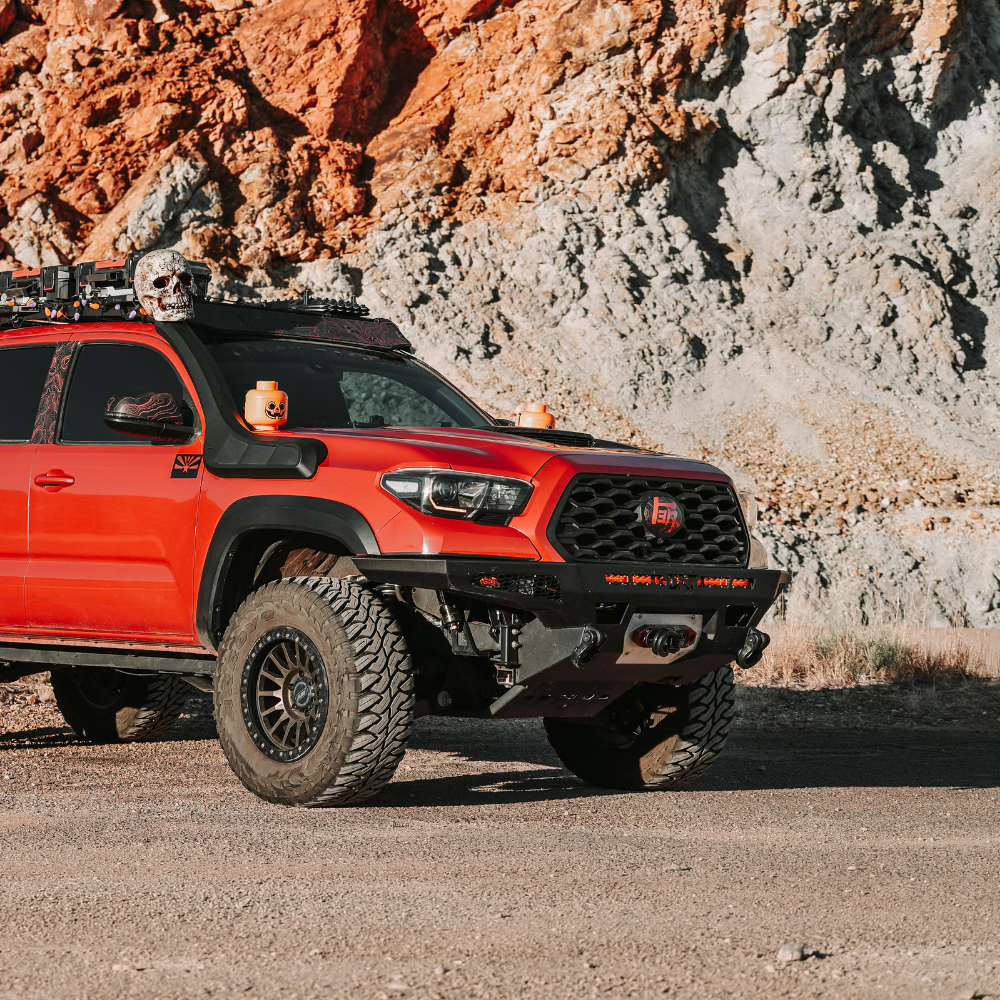

Upgrade your 2016–2023 Toyota Tacoma with a plated front bumper designed for serious off-road performance. Built from premium U.S.-sourced materials, this bumper provides rugged protection, exceptional durability, and smart functionality for demanding adventures.

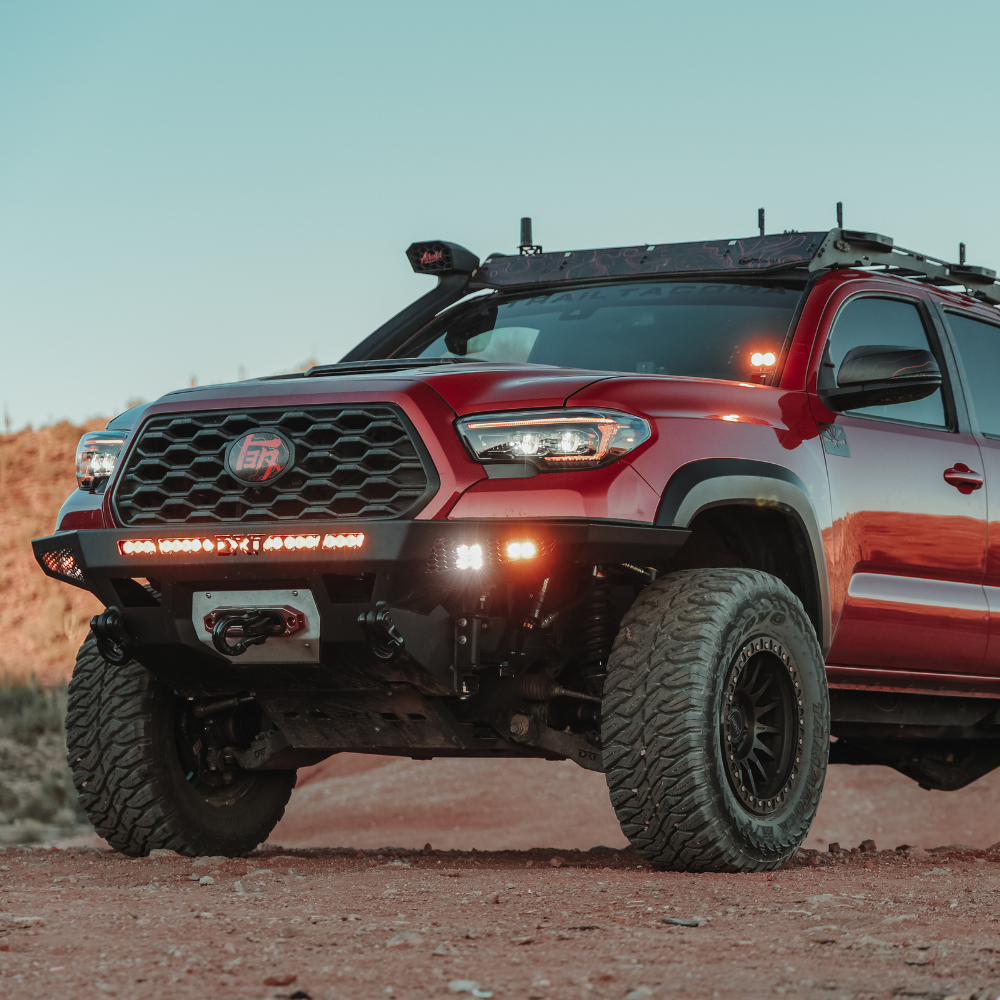

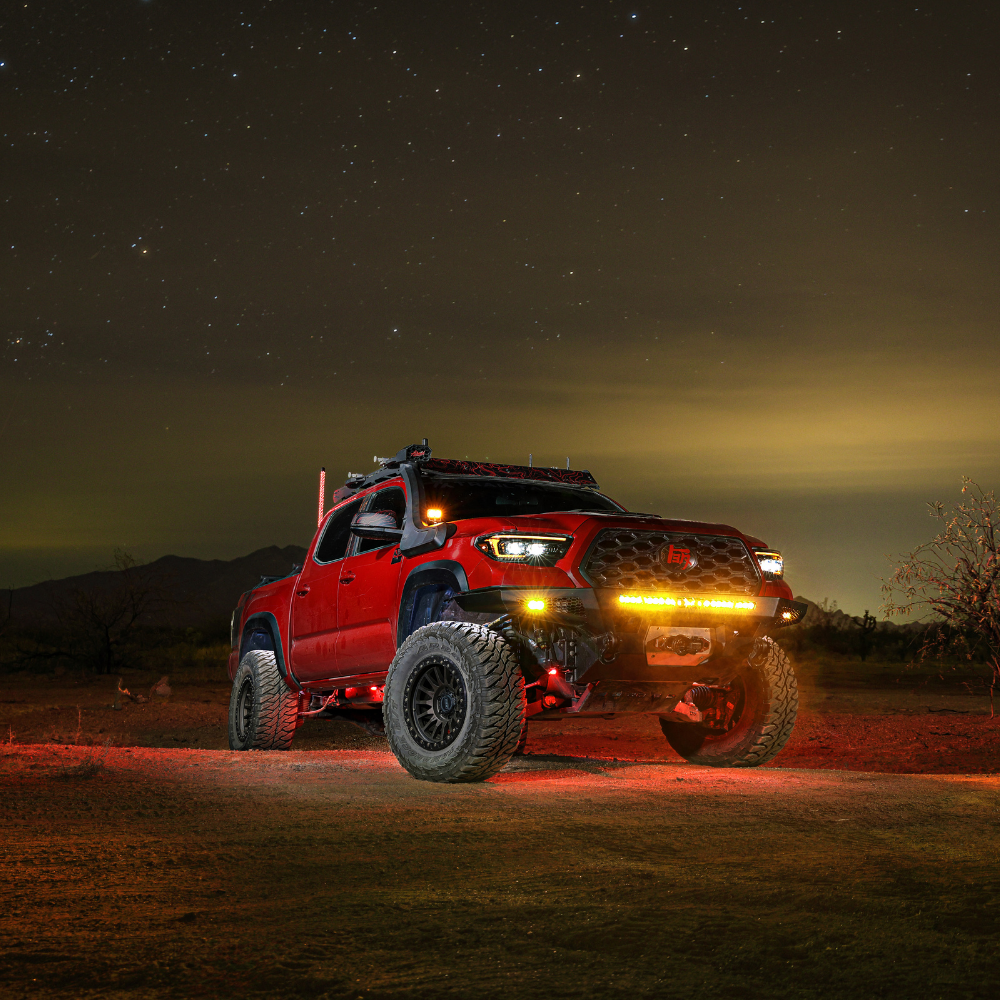

The bumper includes integrated side-wing light mounts compatible with Baja Designs Squadron, S2, and a 30” single-row light bar in the center, delivering excellent visibility in low-light conditions.
A built-in winch mount supports 10K–12K winches (some models may require control box relocation), while a recessed fairlead mount is positioned on a ¼” aluminum skid plate, secured with 5/16” stainless hardware.
Standard frame support brackets are included, mounting through the frame for superior strength and compatibility with aftermarket shock reservoirs from King, Fox, and ADS.
Recovery points feature 1” billet steel D-rings, fully welded front and back, designed for ¾” shackles with a 7/8” pin.
Note: This bumper ships raw and does not come powder coated. Finishing is recommended before installation.
Specs
- Weight: 118 lbs
- Materials:3/16” steel construction¼” aluminum skid plate1 ¾” x .120 wall DOM tubing
- Winch Mount: Fits 10K–12K winches (control box relocation may be necessary)
- Light Compatibility:Center: 30” S8 single-row light barSide mounts: Squadron or S2 lights
- Fairlead Mount: Recessed into skid plate
- D-Ring Mounts: 1” billet steel, fully welded
- Shackles: Designed for ¾” shackles with 7/8” pin
- Frame Supports: Included (mount through the frame, $180 value)
- Skid Plate Compatibility: Works with TRD skid plates
- Finish: Ships raw

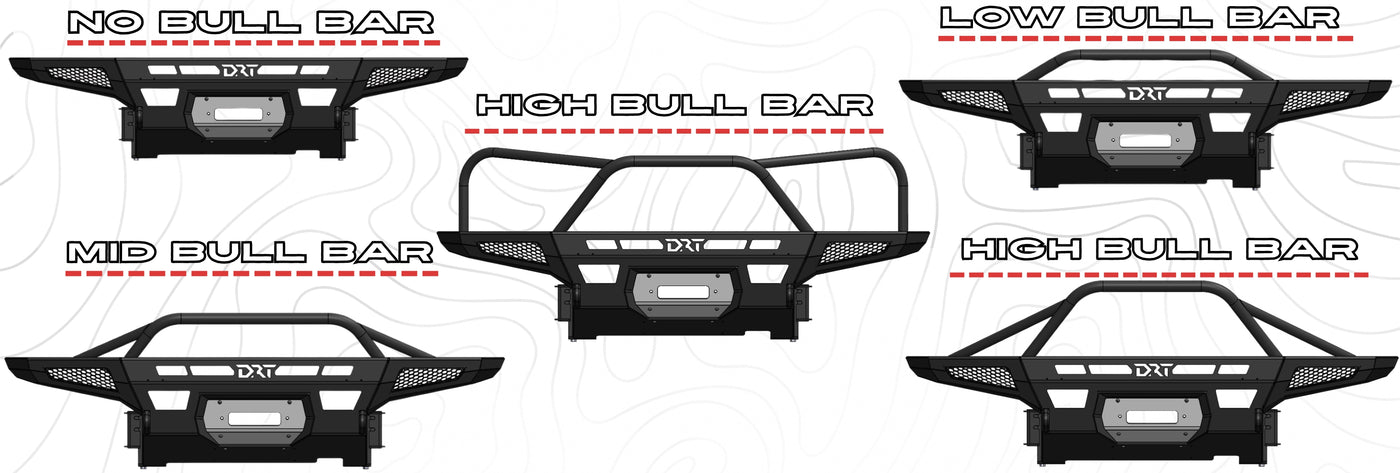

- Bull Bar Options:Low-height (not TSS compatible)Mid-height with 1.5” × .120 side support tubes (TSS compatible)Full-height with 1.5” × .120 side support tubes (TSS compatible)
Lead Times
Estimated lead time: 7–9 weeks
Shipping
We offer free freight shipping to all addresses in the Lower 48 states.
For Alaska, Hawaii, and U.S. territories, shipping rates will be calculated and applied at checkout
