Fabricated Spindles / 2015-2024 4Runner / 2015-2022 GX460

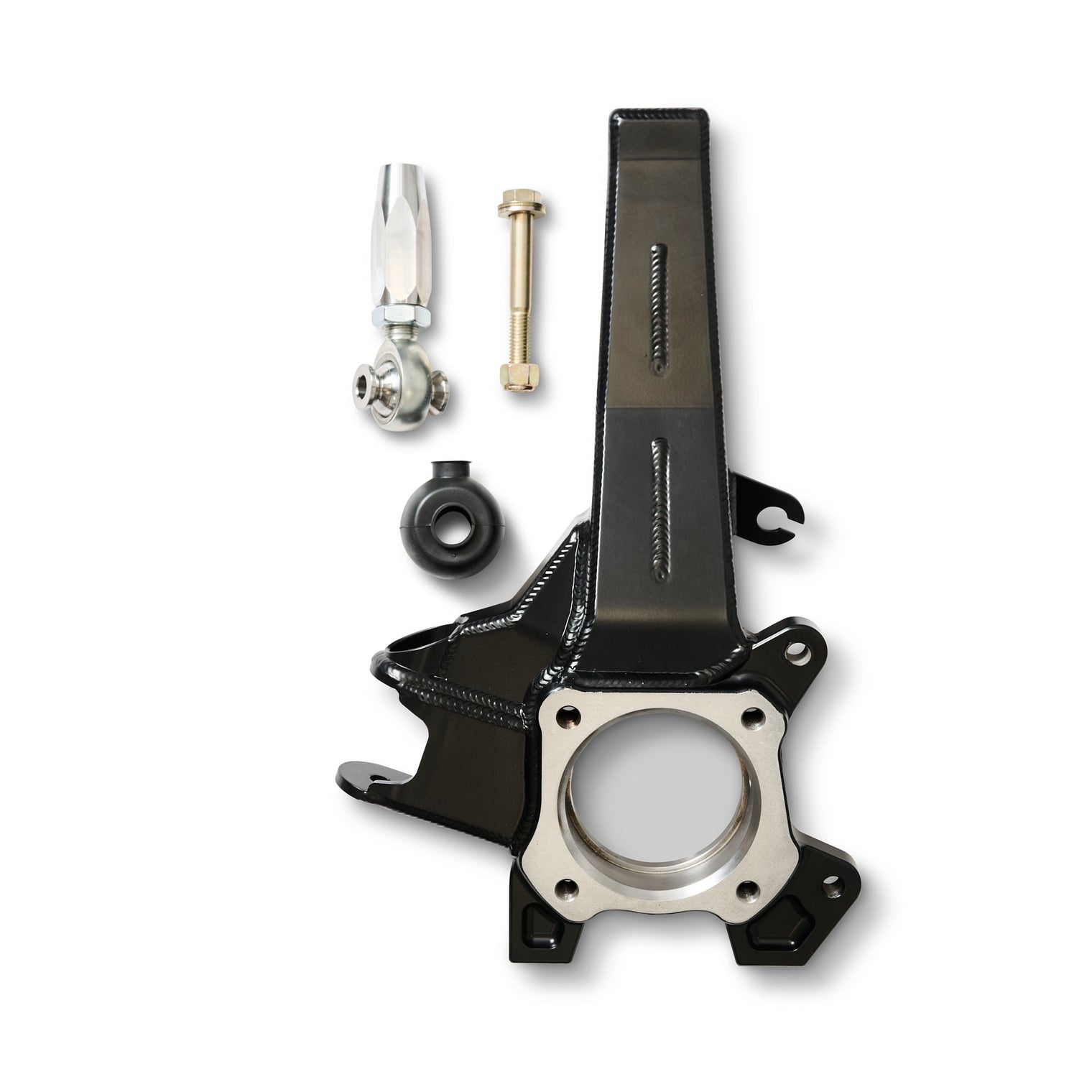

DRT Fabricated Spindle

IMPORTANT NOTE

All non Tacoma models will require a Tacoma bottom taper misalignment from your UCA manufacturer.
If you have questions, please contact info@drt-fabrication.com before ordering.

---

Why Upgrade?

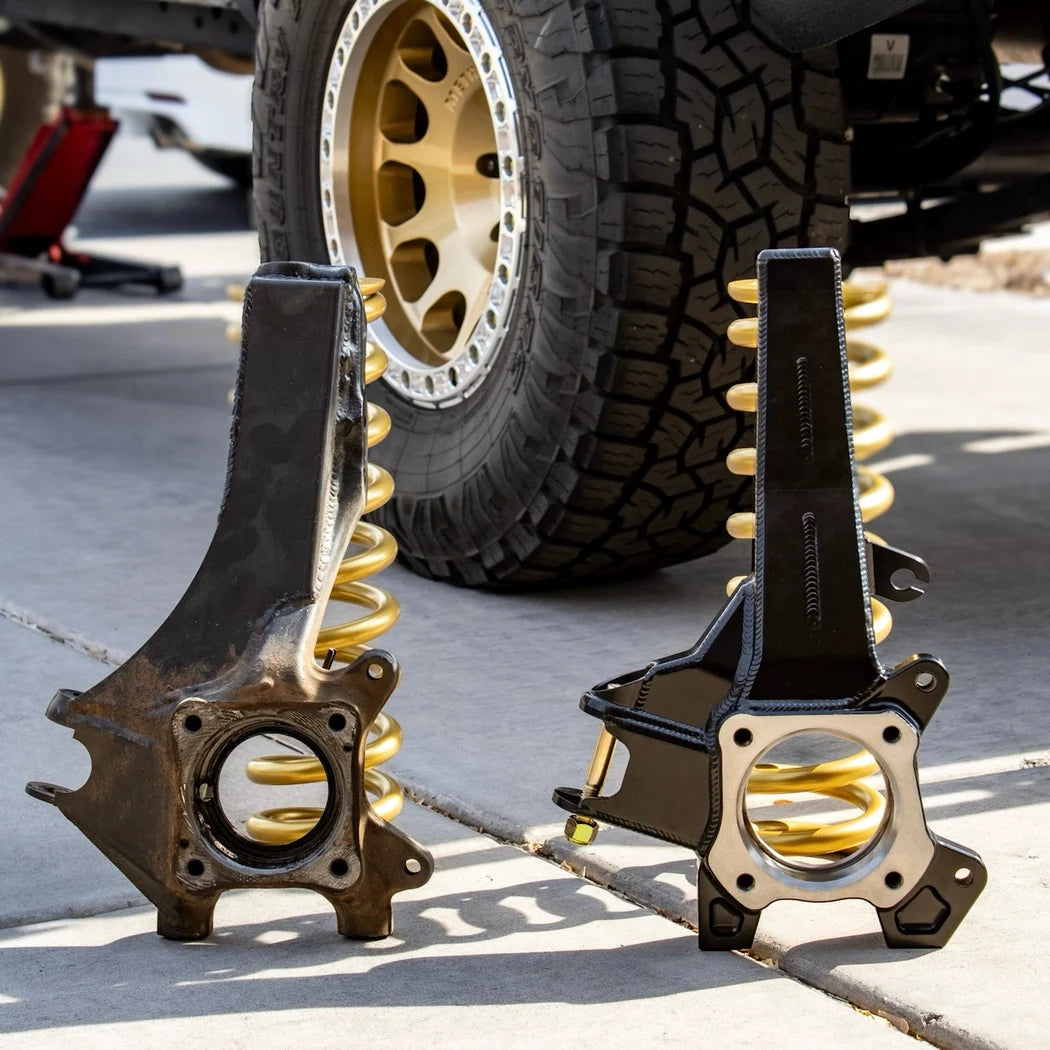

Most bolt on long travel kits on the market today reuse factory spindles, leaving a critical weak point in the suspension system. The DRT Fabrication fabricated spindle eliminates that weak link, providing the missing link needed to build a truly bulletproof suspension package.

This design is based on the factory spindle with no geometry changes, allowing compatibility with any bolt on long travel kit designed around OEM spindles. This includes both 2WD and 4WD Tacoma based suspension systems.

---

Key Features

Strength & Construction

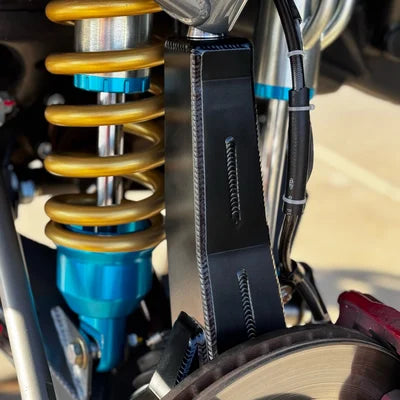

• Built from 3/16 inch and 1/4 inch A36 steel plate with internal gussets

• 100 percent MIG welded for maximum strength and durability

Steering

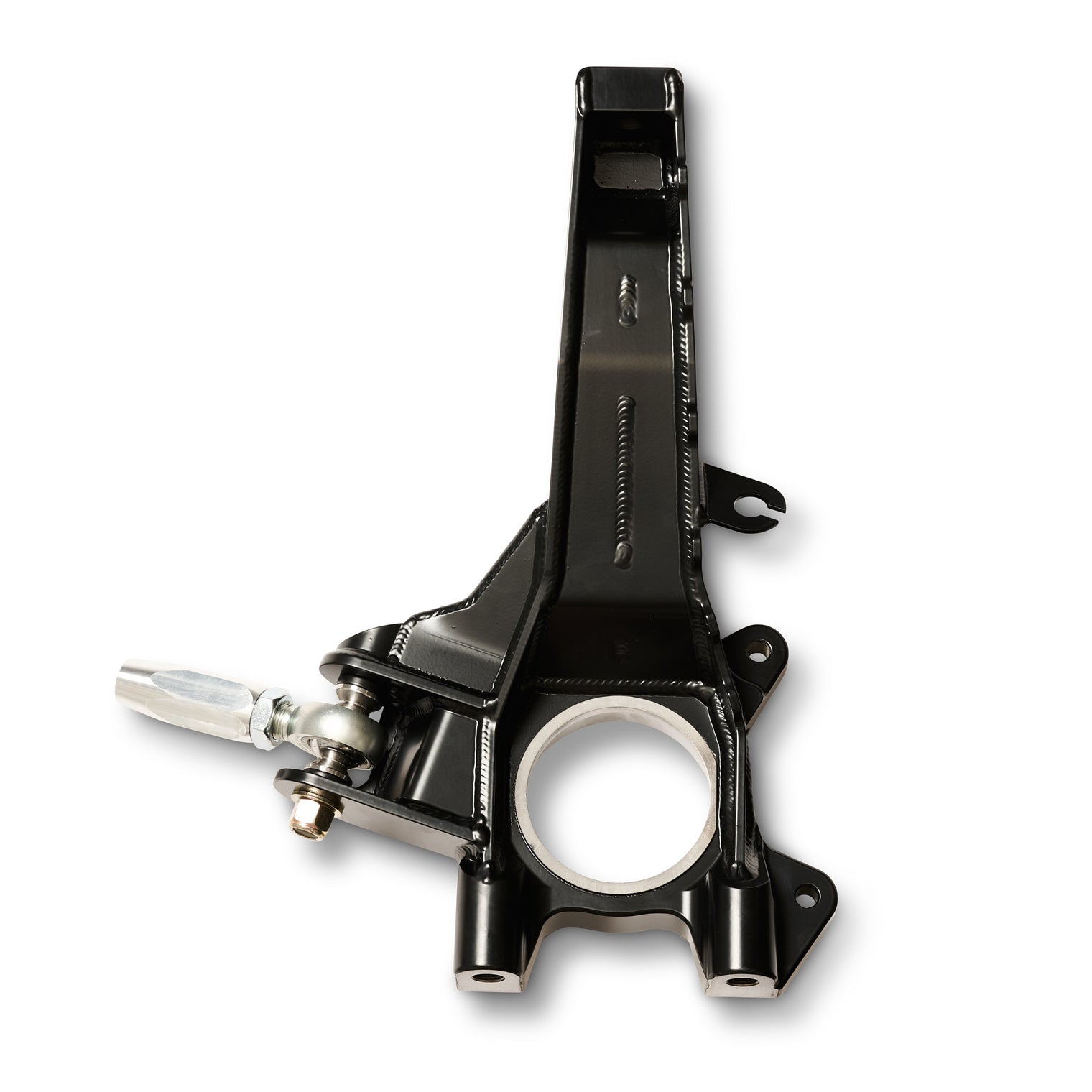

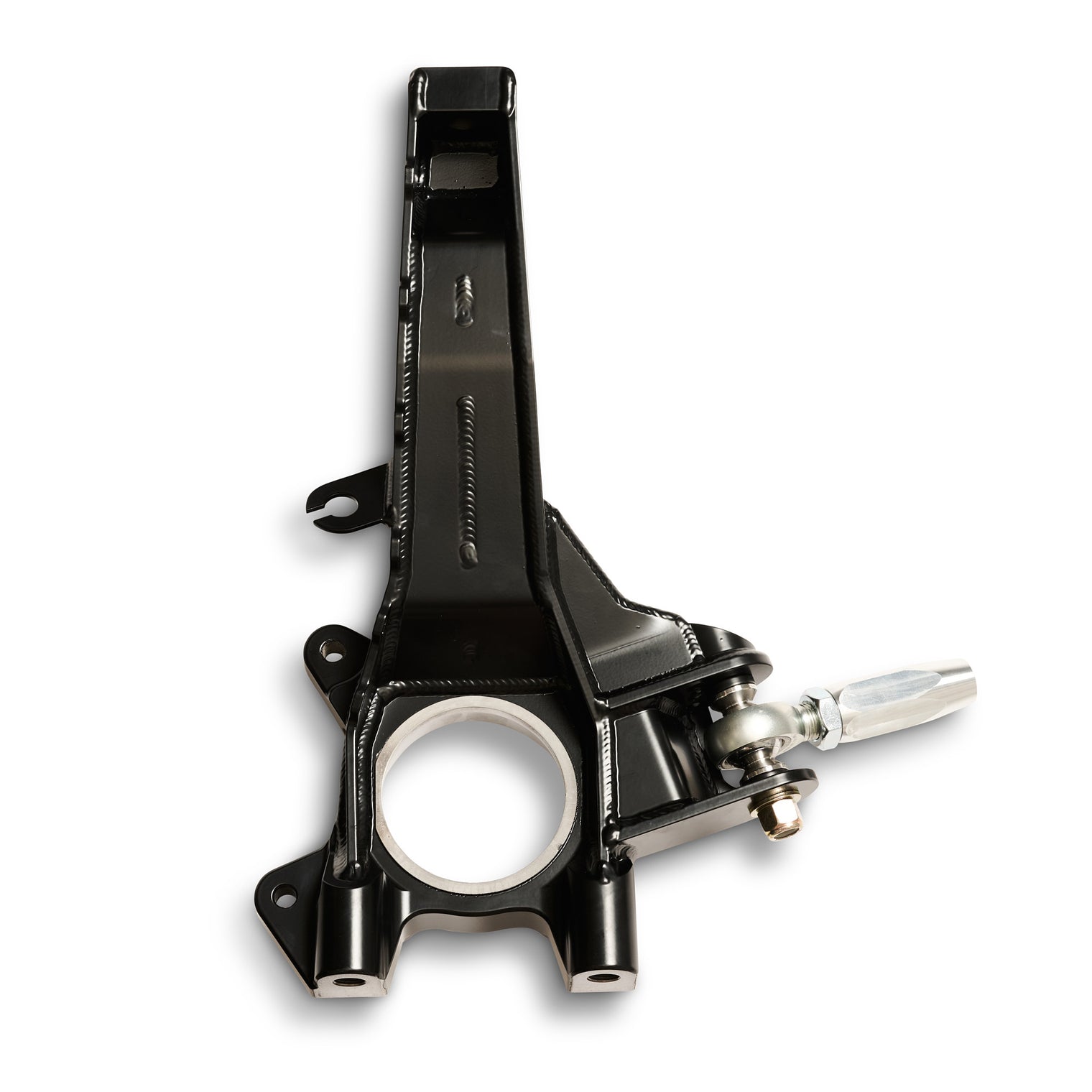

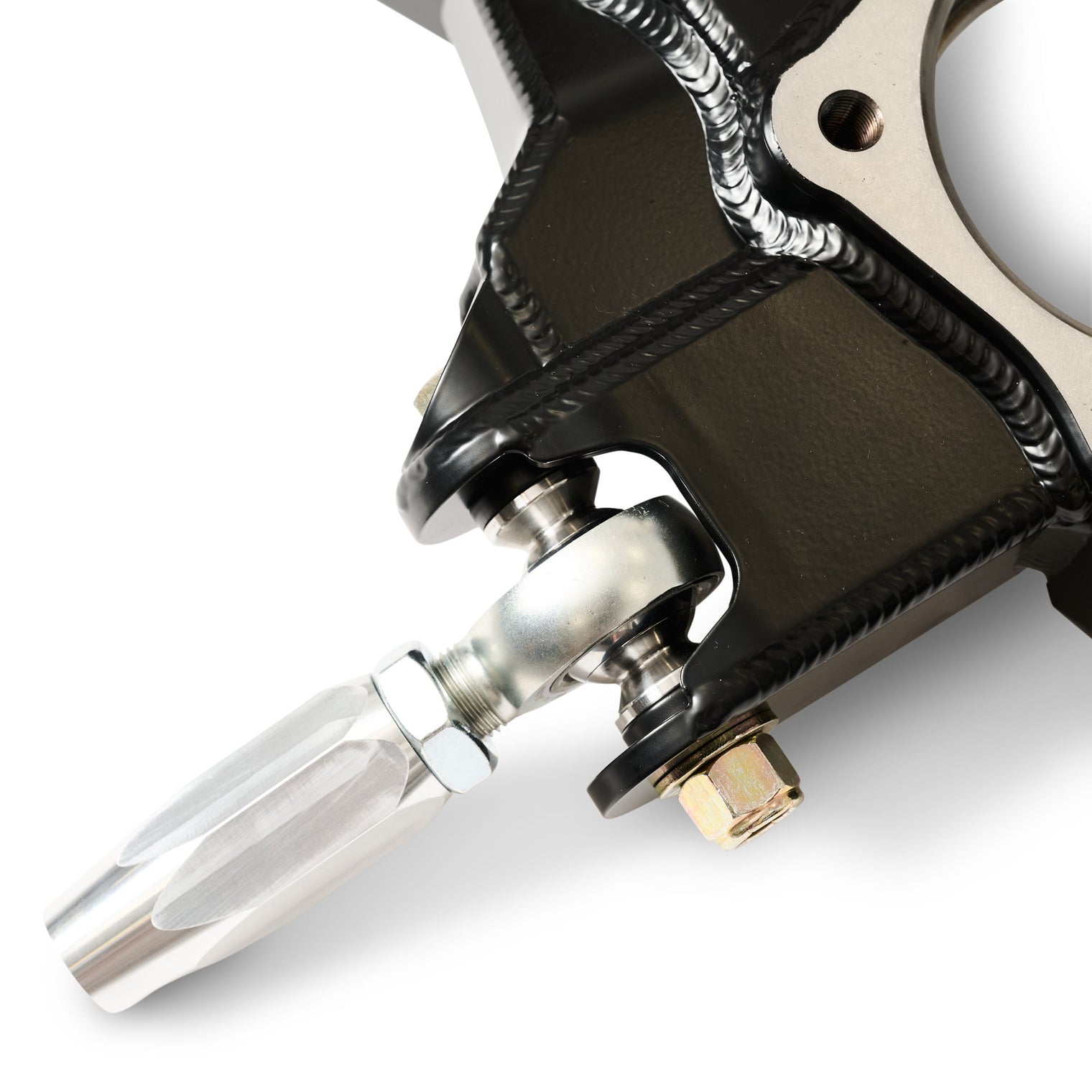

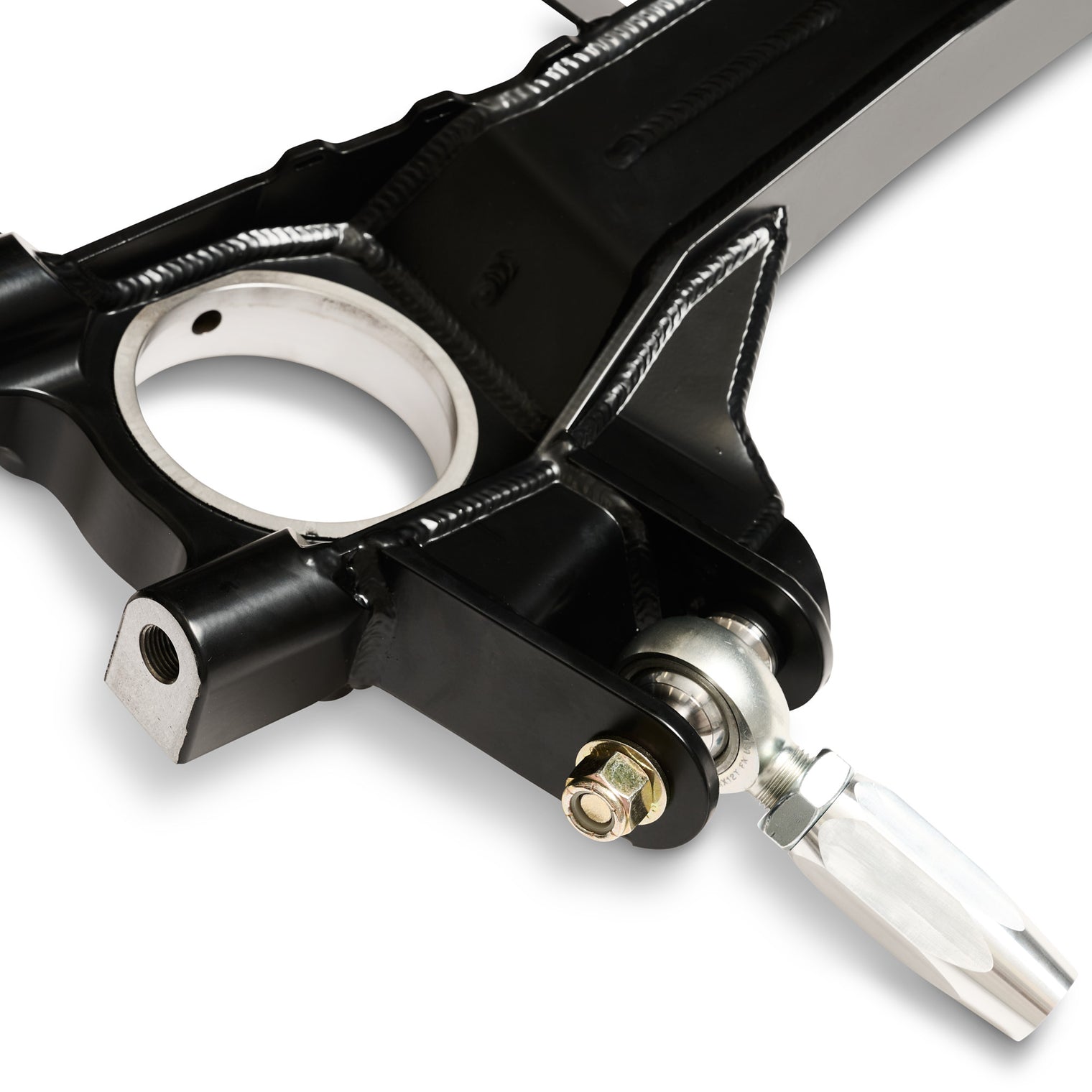

• Standard dual shear heim outer steering with correct heim center placement

• Avoids geometry changes common with aftermarket steering conversions

• Works with factory inner and outer tie rods as well as steering extenders

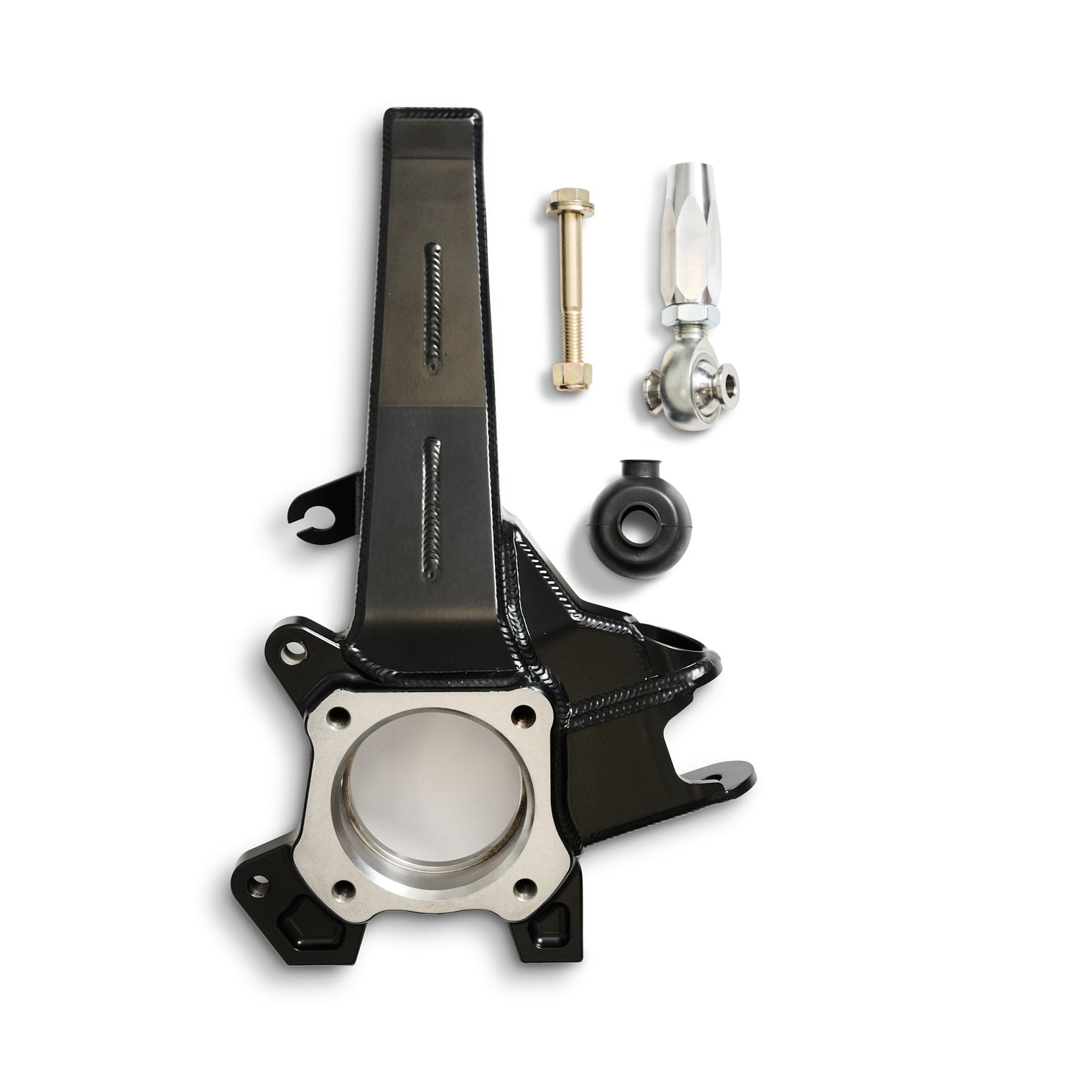

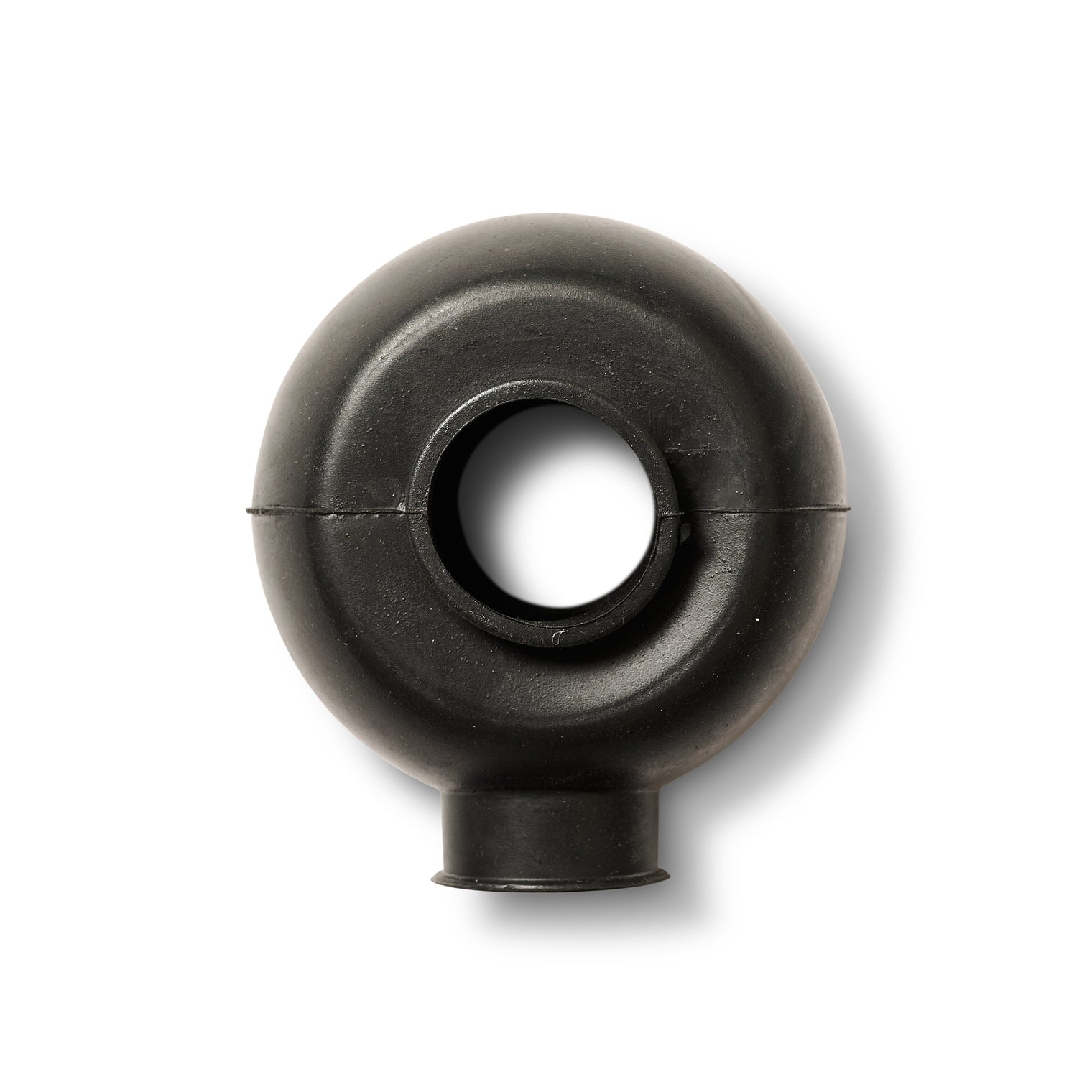

• Includes 3/4 inch FK JMX12T heim, custom high angle misalignments, and rubber boot cover

Hub Block & Brake Integration

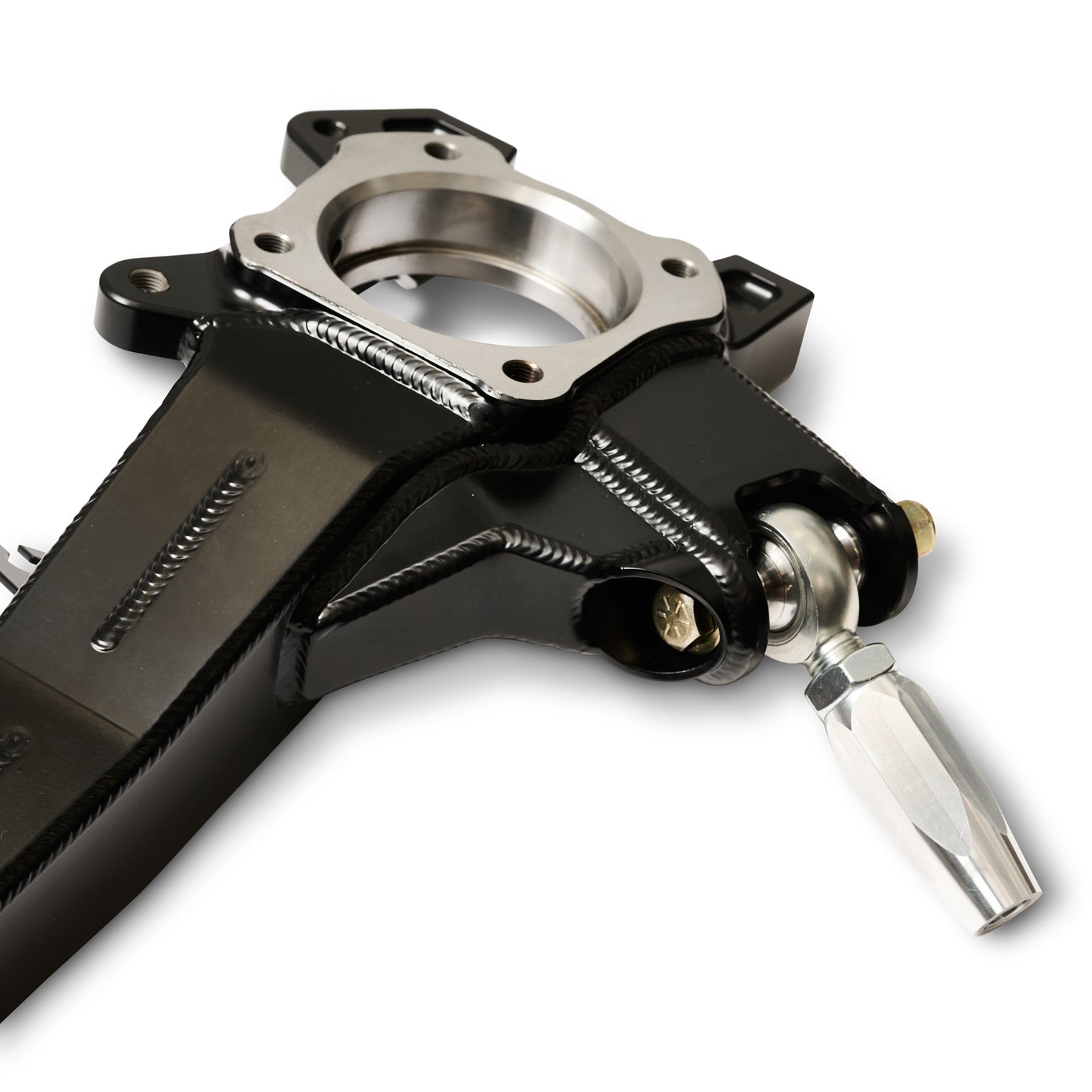

• Machined billet steel hub block with integrated caliper mounts

• ABS sensor relocated behind the caliper bracket for improved protection

• Stress risers minimized through extensive filleting

• 3/16 inch and 1/4 inch A36 steel plate with internal gusseting
• 100 percent MIG welded construction
• Dual shear heim outer steering with boot cover
• Relocated ABS sensor
• Billet hub block, tie rod mount, and UCA mount
• Finish: Satin black powder coat

Wheels

• Minimum 16 inch wheel diameter
• Minimum 4.5 inch backspacing

Suspension

• Works with factory and aftermarket lower control arms
• Fits mid travel and long travel applications using OEM style spindles

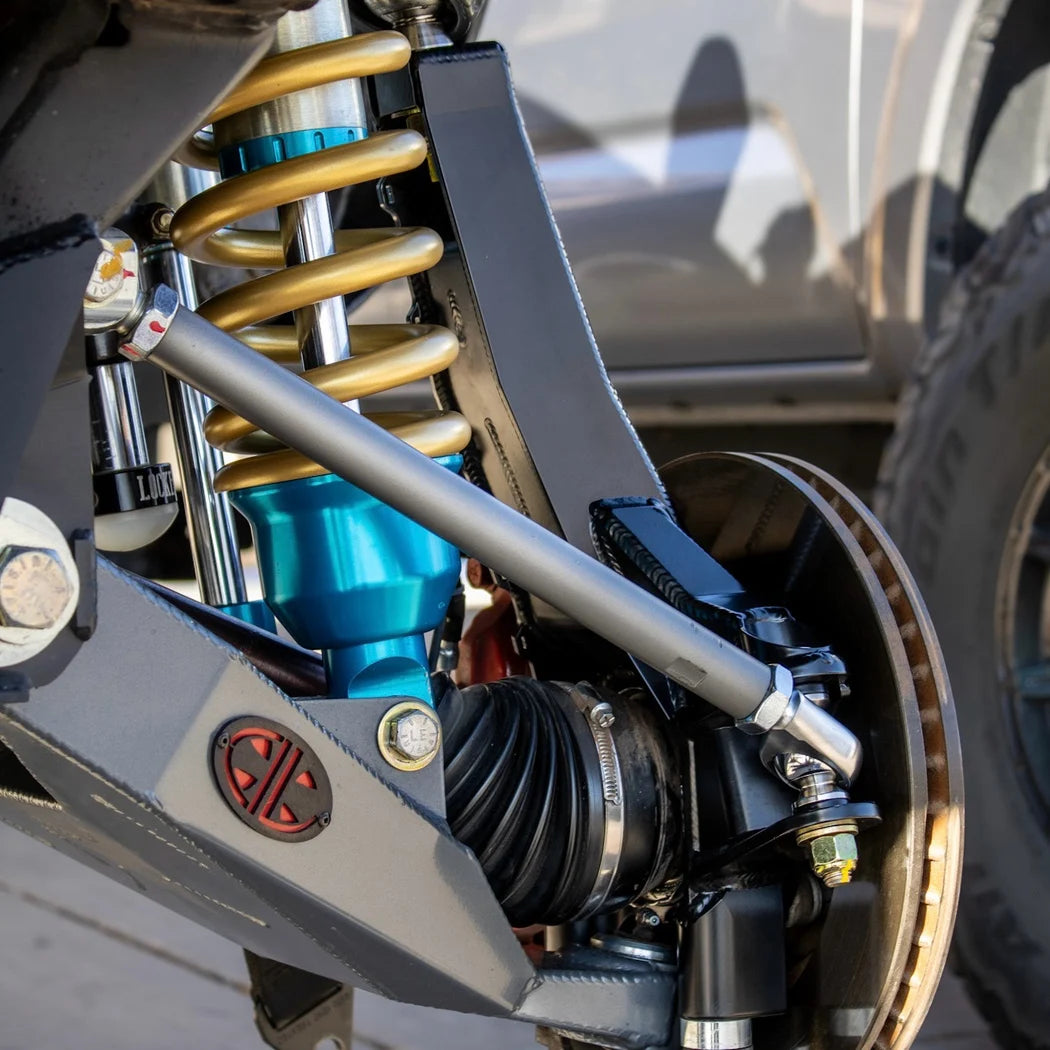

• Compatible with bolt on long travel kits
• Compatible with heim steering kits using a JMX12T heim
• Must use DRT HAM high angle misalignments

Sway Bars

• Not compatible

Brake Kit Fitment

• SOS Performance BBK requires a special adapter (contact SOS Performance)
• PowerBrake BBK requires a special adapter (contact PowerBrake)

Use

For off road use only
