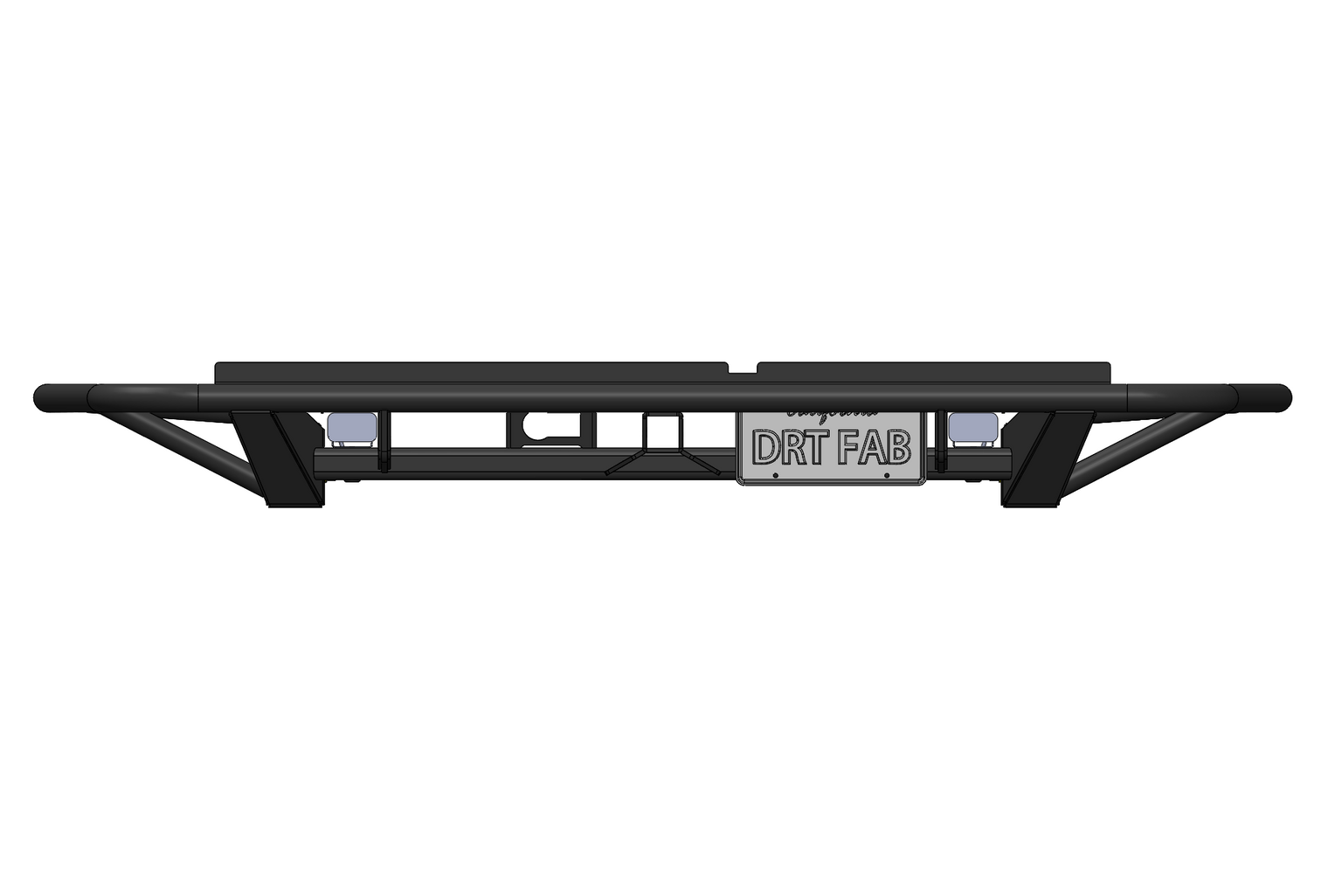

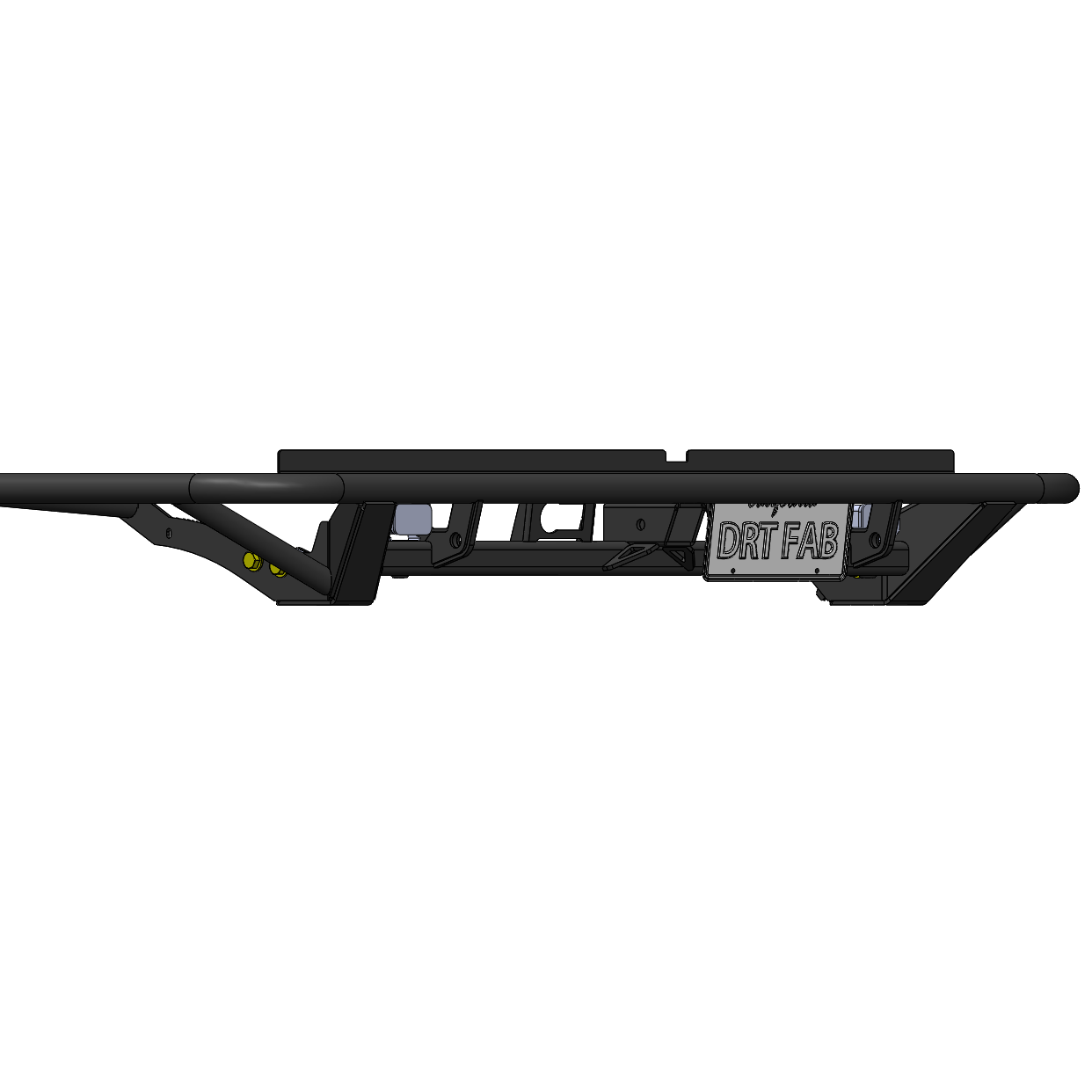

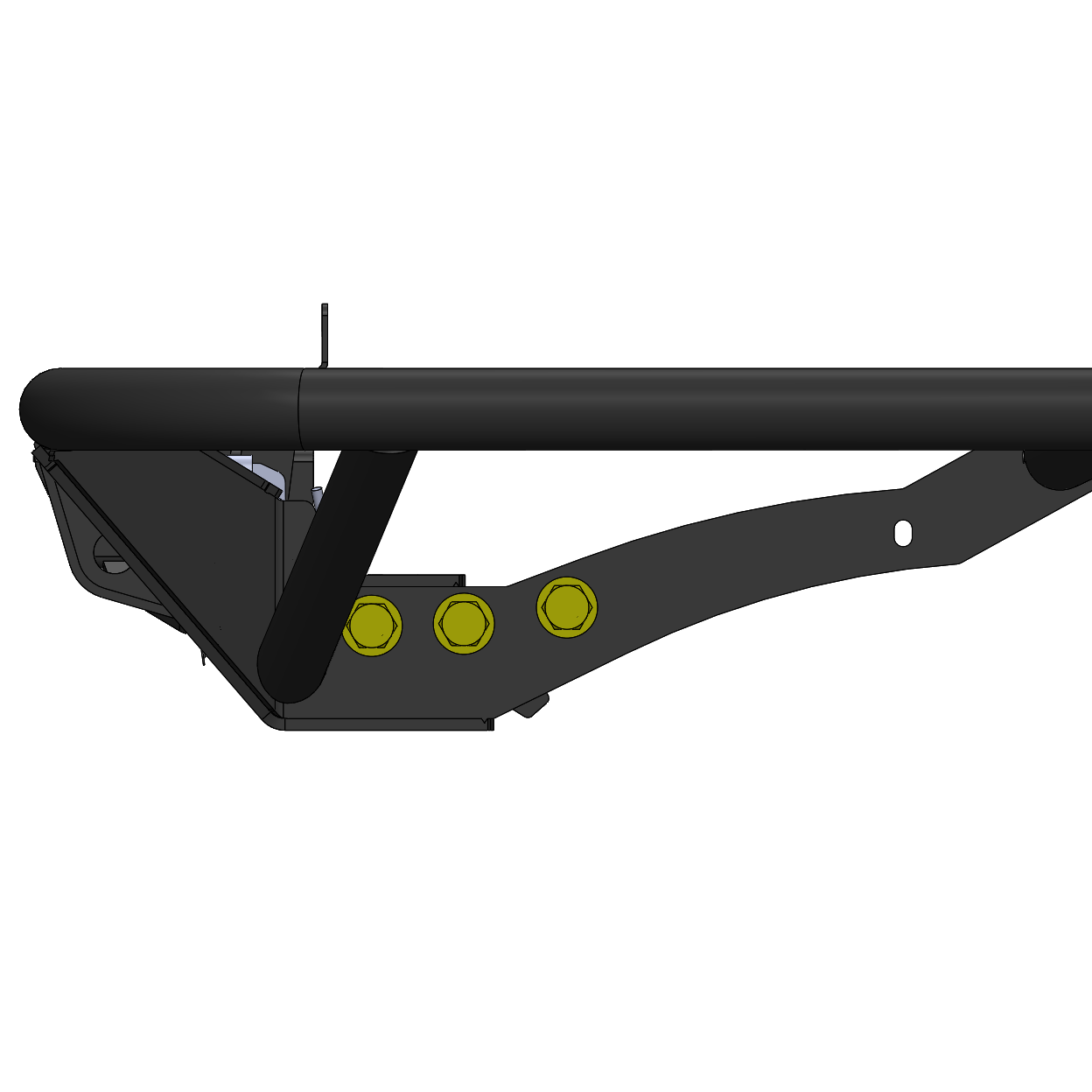

Tacoma High Clearance Rear Bumper / 4th Gen / 2024-Current

Engineered for maximum clearance, uncompromising strength, and serious off-road performance, the DRT Fabrication High Clearance Rear Bumper transforms the rear end of the 2024+ Toyota Tacoma. Purpose-built for the 4th Generation Tacoma, this bumper combines heavy-duty steel plate construction with precision-formed DOM tubing to deliver exceptional strength without unnecessary weight.

Designed to eliminate the limitations of the factory rear bumper, our high clearance design removes the factory rear crossmember and integrated hitch assembly to significantly improve departure angle and maximize clearance behind the rear tires. Whether navigating technical rock trails, steep departures, or demanding off-road terrain, this bumper provides the clearance and protection needed to push your Tacoma further.

Strength Where It Matters. Weight Where It Doesn't.

The bumper's main structure is constructed from 1/4" steel plate, reinforced by a 1.75" x .120" DOM main tube and dual 1.5" x .120" DOM support tubes on each side. Integrated recovery points feature a laminated 3/8" steel core with 1/4" reinforcement plates on both sides, creating a substantial 7/8" total thickness. An integrated 2" x 2" hitch receiver, constructed from 1/4" wall tubing and reinforced with structural gussets, completes the design.

Modern functionality hasn't been sacrificed for off-road capability. The bumper is designed to retain factory Blind Spot Monitoring (BSM) and backup parking sensor functionality (read notes at bottom), while integrated lighting provisions accommodate Baja Designs S2, comparable KC lights, and similarly sized lights. Optional chase and rock light mounting locations provide additional flexibility.

Our adjustable, tool-free license plate mount offers 2 positions. Keep the plate lowered for everyday driving, or slide it approximately 2" upward behind the main tube when heading off-road for added protection and clearance.

Developed through extensive R&D and real-world testing across multiple Tacoma platforms, every bumper is manufactured, welded, and jig-aligned in the USA to ensure consistent fitment, structural integrity, and the quality expected from DRT Fabrication.

Built Light. Built Right.

Key Features

• 2024+ Toyota Tacoma Fitment: Purpose-built for the 4th Generation Tacoma
• High Clearance Design: Factory rear crossmember delete maximizes departure angle and rear clearance
• Heavy-Duty Construction: 1/4" steel plate structure with 1.75" x .120" DOM main tube and dual 1.5" x .120" DOM support tubes per side
• 7/8" Recovery Points: Laminated 3/8" steel plate with 1/4" outer reinforcement plates, designed for 3/4" shackles with 7/8" pins
• Integrated Hitch Receiver: Reinforced 2" x 2" receiver constructed from 1/4" wall tubing
• Factory Sensor Compatibility: Designed to retain BSM and backup parking sensors; adjustment or calibration may be required on some trucks
• Integrated Light Mounts: Compatible with Baja Designs S2, comparable KC lights, and similarly sized lights
• Additional Lighting Options: Provisions for optional chase lights and downward-facing rock lights
• Adjustable License Plate Mount: Tool-free 2-position design allows the plate to tuck behind the main tube for trail use
• Made in the USA: Precision-manufactured, welded, and jig-aligned for consistent quality and fitment
• Raw Steel Finish: Ships raw unless otherwise specified

Important: Installation requires cutting and removing the factory rear hitch crossmember. Certain lower trim models require minor welding. Trucks equipped with factory ARB bumpers require separately purchased OEM Toyota plastic bumper caps (Toyota part numbers 52155-AK010 passenger side and 52156-AK010 driver side). Review all installation and sensor compatibility notes before purchasing.

Lead Time

Estimated lead time: 8-12 weeks. Bumpers are made to order and cannot be canceled after production begins.

Materials:

• Main Structure: 1/4" steel plate throughout all major structural sections
• Main Tube: 1.75" x .120" wall DOM tubing
• Support Tubes: Two 1.5" x .120" wall DOM tubes per side
• Recovery Points: Laminated 3/8" steel plate with 1/4" outer reinforcement plates welded on both sides, creating a total thickness of 7/8"

Recovery Points:

• Reinforced recovery points integrated into the bumper structure
• 7/8" total thickness (3/8" center plate + 1/4" reinforcement plates on each side)
• Designed for 3/4" shackles with 7/8" pins

Hitch Receiver:

• Integrated 2" x 2" receiver constructed from 1/4" wall square tubing. Hitch is not rated for towing.
• Reinforced with structural gussets tied directly into the bumper assembly

Lighting Compatibility:

• Integrated mounts for Baja Designs S2, comparable KC lights, and similarly sized lighting
• Optional chase light mounting on the 2" x 2" receiver tube
• Optional rock light mounting behind the bumper

Adjustable License Plate Mount:

• Tool-free adjustable design
• Street Position: License plate sits in the lowered position for normal driving
• Trail Position: Loosen the thumb screws, slide the plate approximately 2" upward behind the main tube, and retighten for improved clearance

Manufacturing:

• Built in the USA

Finish:

• Ships raw steel unless otherwise specified

Sensor Compatibility:

• Compatible with factory Blind Spot Monitoring (BSM) sensors
• Compatible with factory backup parking sensors

Crossmember:

• Requires removal of the factory rear crossmember to maximize departure angle and ground clearance

Fitment Notes:

• Designed exclusively for 2024+ Toyota Tacoma models
• Factory rear crossmember removal required
• Retains compatibility with factory BSM and backup parking sensors
• Models equipped with factory ARB bumpers require the purchase of OEM plastic bumper caps from Toyota for proper installation: 52155-AK010 (passenger side) and 52156-AK010 (driver side)

Important Information: What You Need to Know

• BSM Sensor Compatibility: This bumper has undergone extensive R&D and testing across multiple trucks to ensure compatibility with factory Blind Spot Monitoring (BSM) and backup parking sensors. The majority of trucks will not experience sensor issues. However, Toyota's sensor positioning tolerances are extremely tight, allowing approximately 2° of vertical tilt and 5° of horizontal angle variation.
• Sensor Positioning & Calibration: Based on our testing, factory sensor positioning can vary slightly between trucks. We believe this is due to individual sensor alignment and calibration during Toyota's assembly process. In the event of a BSM issue, the sensor typically requires a slight rotation toward the center of the truck. While most installations will not require additional adjustments, some trucks may require professional sensor calibration after installation.
• Factory Hitch Removal: The factory hitch receiver is integrated into a welded crossmember that must be cut and removed to install this bumper. Cutting of the factory frame is required.
• Lower Trim Model Installation: Certain lower trim models (SR/SR5) do not have the factory mounting bungs found on higher trim levels. These trucks will require minor welding during installation. All necessary mounting bungs are included with the bumper at no additional cost.
• Factory ARB Bumper Models: Trucks originally equipped with factory ARB bumpers will require separate OEM Toyota plastic bumper caps. This bumper is not compatible with the factory ARB plastic caps. Replacement caps must be purchased separately from Toyota: part numbers 52155-AK010 (passenger side) and 52156-AK010 (driver side).

Estimated lead time: 8-12 weeks

Note: Bumpers are made to order and can not be canceled after production begins.
